KL01L-ILED-I LED Examination Light

The Keling KL01L-ILED-I is an LED examination shadowless lamp with a new-shape modern design, delivering ≥40,000 lux at 1 m and ≥60,000 lux at 0.5 m, with a high color rendering index of Ra ≥ 95 and 4500 ± 500 K color temperature. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for examination rooms in hospitals, clinics and outpatient facilities, and features a detachable handle for easy sterilization.

Illuminance at 1 m: 40,000 lux
Colour temperature: 4,500 ± 500 K
Colour rendering: Ra ≥ 95
Mounting: Mobile / Wall

Request a quotation WhatsApp

Add to comparison

Overview

The KL01L-ILED-I examination shadowless lamp combines a distinctively modern lamp head design with high-performance LED cold-light technology to deliver clinical-grade illumination with a visually refined appearance. The new-shape round head — finished in clean white with a pronounced black rim — presents a professional aesthetic suited to contemporary examination suites, specialist consulting rooms and private clinics where both performance and interior design matter.

The LED cold light source produces ≥40,000 lux at the standard 1 m reference distance and rises to ≥60,000 lux at 0.5 m close focus, making the KL01L-ILED-I effective for detailed examination tasks that bring the lamp head close to the patient — dermatological inspection, wound assessment, oral and ENT checks. A color rendering index of Ra ≥ 95 is the key differentiator in this model: at this CRI level, skin tone, mucosa, bruising and subtle tissue color changes are rendered with sufficient fidelity to support clinical decision-making without the distortion that lower-CRI sources introduce.

Multi-level brightness adjustment is available across the arm, which offers flexible rotation of 75° in all four directions and a lifting distance of ≥ 500 mm to cover different table heights and working positions. The detachable handle jacket removes and reinstalls without tools, making inter-patient cleaning straightforward. The lamp is available in floor-standing and wall-mount configurations to suit different examination room layouts.

Quick facts

The Keling KL01L-ILED-I is an LED examination shadowless lamp featuring a new elegant shape with an imported LED cold light source.
Illumination is ≥40,000 lux at 1 m and ≥60,000 lux at 0.5 m; color temperature is 4500 ± 500 K.
Color rendering index is Ra ≥ 95 — notably higher than standard exam lamp minimums, ensuring accurate tissue and skin tone representation.
Tilt range is 75° left/right and 75° front/back; lifting distance is ≥ 500 mm; input power is 20 ± 10% VA.
The lamp uses a flexible rotation arm for precise positioning and features a detachable handle jacket for cleaning and disinfection.
The KL01L-ILED-I is suited for wall-mount and floor-standing installation in examination rooms.

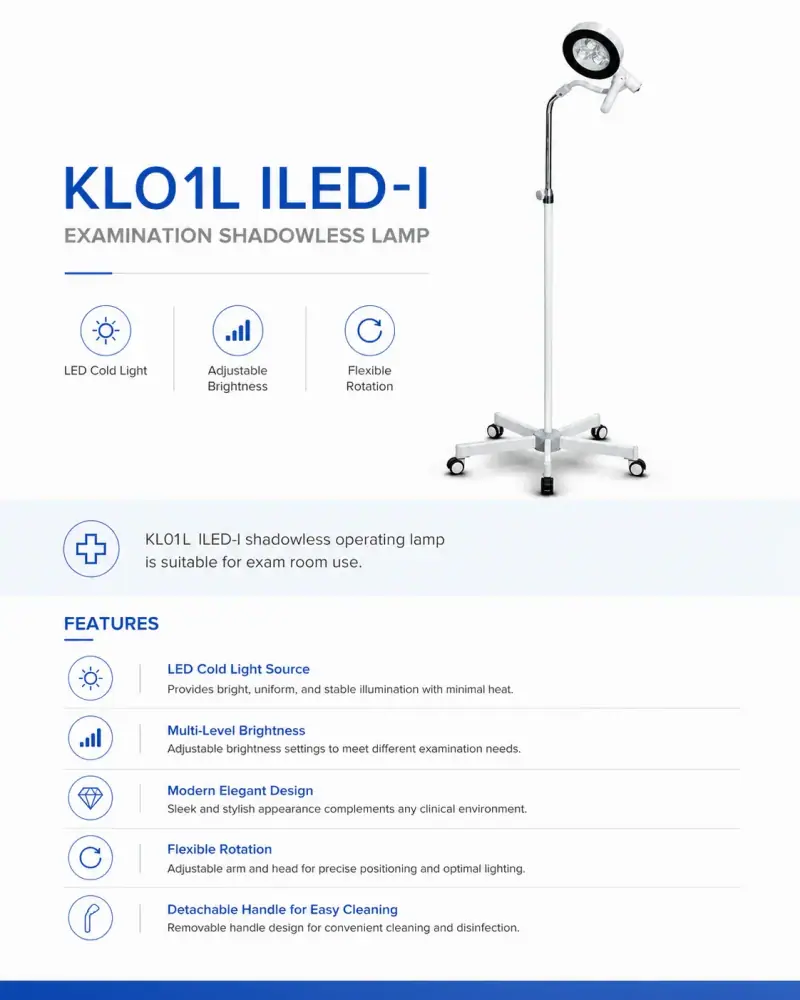

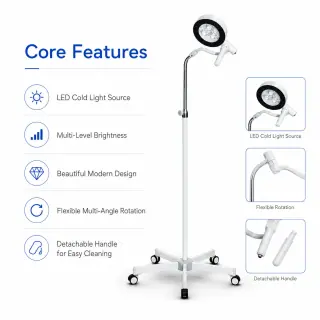

Key features

Ra ≥ 95 High-CRI LEDexceptionally accurate color rendering of skin tone, mucosa and tissue detail for reliable clinical examination.
Dual-Distance Illumination≥40,000 lux at 1 m and ≥60,000 lux at 0.5 m provide strong output at both standard and close-focus working distances.

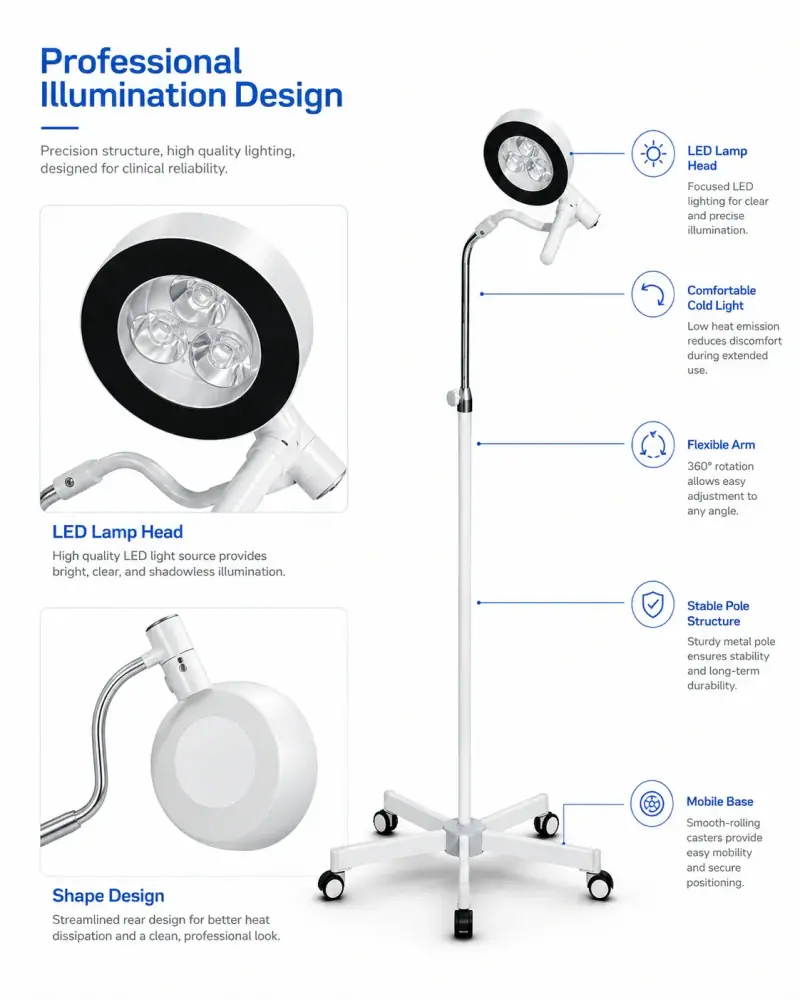

New Modern Elegant Designdistinctive new-shape round lamp head complements contemporary clinical interiors and private clinic environments.

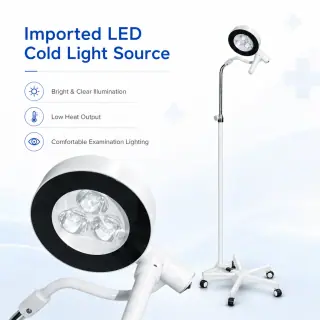

Imported LED Cold Light Sourcelow heat, stable brightness and long service life with minimal maintenance.

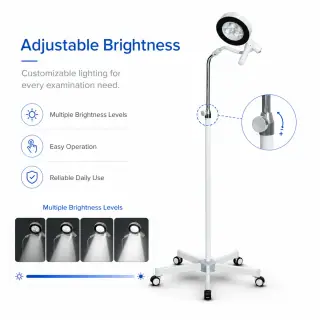

Multi-Level Brightness Controladjustable illumination intensity for different examination needs.

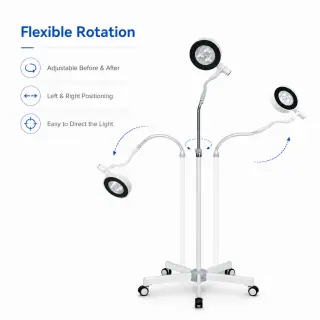

Flexible Rotation Arm75° tilt in all four directions and ≥ 500 mm lifting distance for versatile positioning.

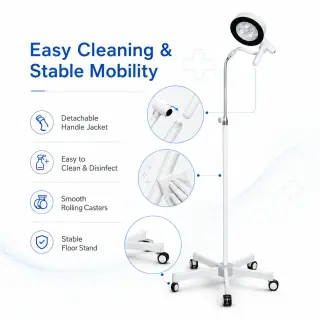

Detachable Handle for Easy Cleaningremovable handle jacket supports rapid disinfection between patients.

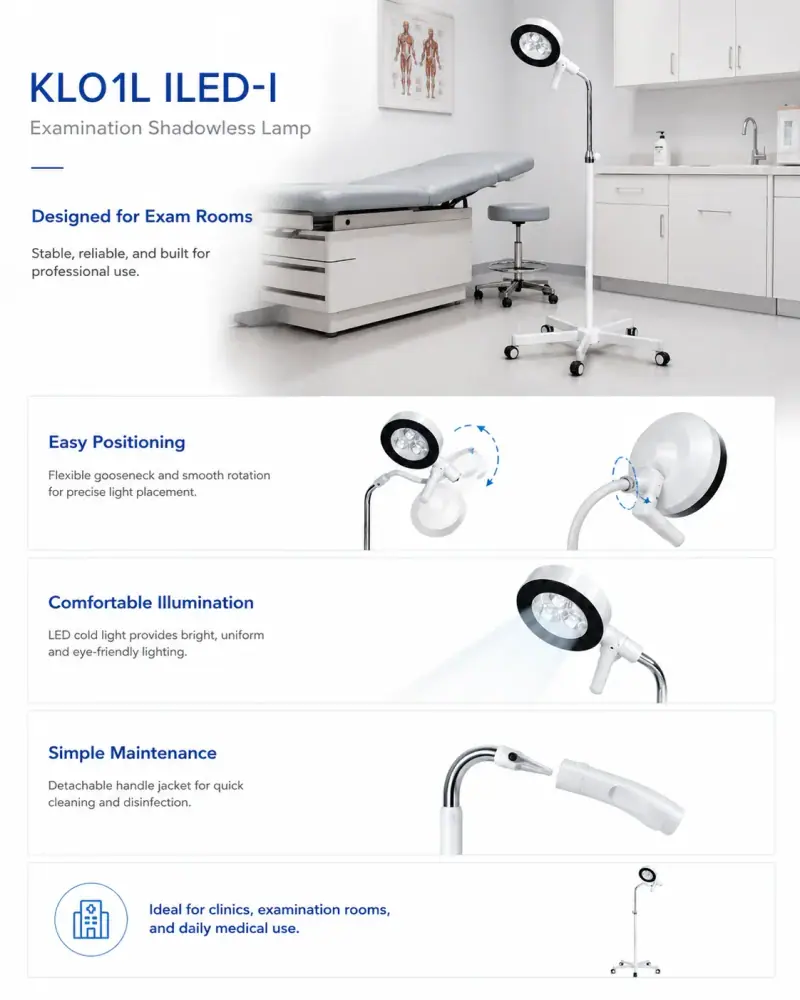

Floor-Standing and Wall-Mount Optionssuits fixed examination bays and wall-bracket installations.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

KL01L-ILED-I technical specifications
Model	KL01L-ILED-I
Illumination at 1 m (lux)	≥40,000
Illumination at 0.5 m (lux)	≥60,000
Color rendering index (Ra)	Ra ≥ 95
Color temperature (K)	4500 ± 500
Input power (VA)	20 ± 10%
Tilt left and right	75°
Tilt front and back	75°
Lifting distance (mm)	≥500

Applications

The KL01L-ILED-I examination shadowless lamp is suited for specialist consulting rooms (dermatology, ENT, ophthalmology, gynaecology), general medical examination bays, private clinics and day-surgery pre-assessment areas, paediatric examination rooms, dental practices and any clinical setting where high-CRI illumination is required for accurate color-based clinical assessment.

Detail sheets

Select a sheet to view it full screen.

Frequently asked questions

What is the KL01L-ILED-I examination lamp used for?

The Keling KL01L-ILED-I is a LED examination shadowless lamp for clinical examination rooms. It provides ≥40,000 lux of high-CRI (Ra ≥ 95) cool-white illumination suited to physical examinations, specialist consultations and close-focus clinical inspection, with a modern design suitable for both hospital outpatient and private clinic environments.

What makes the KL01L-ILED-I different from other exam lamps in the KL01L series?

The KL01L-ILED-I is distinguished by its higher color rendering index (Ra ≥ 95 versus Ra ≥ 85 for the ILED and IILED models), its dual-distance illumination rating (≥40,000 lux at 1 m, ≥60,000 lux at 0.5 m), and its new-shape modern design. These features target specialist clinical environments where accurate tissue color and refined aesthetics are both important.

What are the arm tilt and lifting specifications of the KL01L-ILED-I?

The KL01L-ILED-I tilts 75° left and right and 75° front and back, with a total lifting distance of ≥ 500 mm. This allows the lamp to be accurately directed at the examination area from a range of positions and heights.

Can the KL01L-ILED-I be ordered in quantity for private clinic or hospital network supply?

Yes. Keling Medical exports examination lamps to hospitals, private clinics and distributor networks worldwide through its Shanghai sales and export center. Bulk and OEM orders are available; contact Keling Medical at our export team for pricing and lead time.
