KL05L-LED Six-Hole LED Surgical Light

Q: What is the KL05L-LED used for?

The Keling KL05L-LED is an LED surgical light for operating theatre illumination. It delivers 90,000 lux through a six-hole LED multi-reflector lamp head with illumination depth ≥ 500 cm, providing high-efficiency, bright, shadowless light for general and specialist surgical procedures in hospitals.

Q: Does the KL05L-LED have a battery backup?

Yes. The mobile configuration (KL05L.I LED) integrates a 12 V, 12 AH × 2 lead-acid battery that automatically powers the lamp during mains power interruptions. This ensures uninterrupted surgical illumination during critical procedures in the event of a power outage.

Q: How does the KL05L-LED compare to the halogen KL05L in energy use?

The KL05L-LED consumes 36 VA versus 150 VA for the halogen KL05L — a reduction of approximately 76% in input power. Despite lower energy consumption, the LED version delivers 90,000 lux compared to the halogen's 80,000 lux, demonstrating the efficiency advantage of LED technology over cold-light halogen for the same lamp head geometry.

Q: Are the KL05L-LED models available for international export and bulk orders?

Yes. Keling Medical supplies LED surgical lights to hospitals, operating theatre contractors and medical distributors globally through its Shanghai export center. All three KL05L-LED configurations are available for project and OEM orders; contact Keling Medical at https://www.keling-surgicallight.com/contact/ for specifications and pricing.

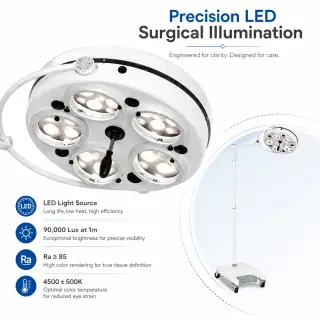

The Keling KL05L-LED is an LED surgical light delivering 90,000 lux at 1 m through a six-hole multi-reflector lamp head with LED bulbs, a color temperature of 4500 ± 500 K and Ra ≥ 85 color rendering. It is manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) and is available in mobile (KL05L.I LED), ceiling-mounted (KL05L LED) and wall-mounted (KL05L.III LED) configurations; the mobile variant incorporates a 12 V × 2, 12 AH lead-acid battery for backup operation.

Illuminance at 1 m: 90,000 lux
Colour temperature: 4,500 ± 500 K
Colour rendering: Ra ≥ 85
Mounting: Ceiling / Mobile / Wall

Request a quotation WhatsApp

Add to comparison

Overview

The KL05L-LED LED surgical light is the LED-technology version of the KL05L series, combining the established six-hole multi-reflector lamp head with LED light sources to achieve 90,000 lux — 12.5% higher than the halogen KL05L's rated 80,000 lux — while consuming only 36 VA versus the halogen's 150 VA. This efficiency gain translates directly to lower running costs, reduced heat generation and a substantially lighter load on the facility's electrical infrastructure, while the LED light source brings instantaneous full brightness and consistent output across its service life.

The six-hole reflector head continues to deliver an even, shadow-minimizing surgical field across the operative area, with illumination depth rated at ≥ 500 cm to reach into deep body cavities during abdominal, thoracic and pelvic procedures. The 24 V LED bulb specification maintains compatibility with standard surgical lighting supply infrastructure for facilities managing mixed halogen and LED installations.

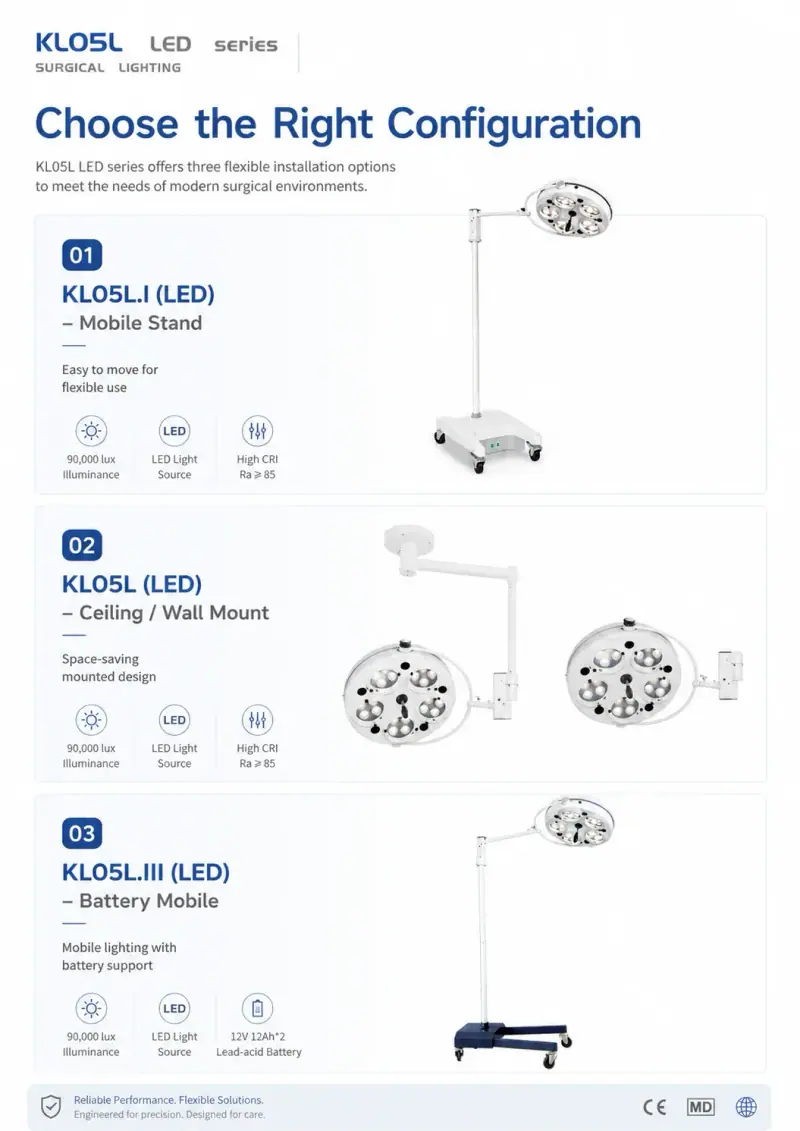

A distinguishing feature of the KL05L-LED mobile configuration (KL05L.I LED) is the integrated 12 V, 12 AH × 2 lead-acid battery system, which provides autonomous power for a defined operating period in the event of mains failure. This makes the mobile KL05L-LED a true dual-mode surgical light: primary mobile OR lighting in normal operation, and an automatic standby source when the mains circuit trips. Three mounting options — mobile floor-standing (KL05L.I LED), ceiling-mounted (KL05L LED) and wall-mounted (KL05L.III LED) — cover the full range of surgical room layouts.

Quick facts

The Keling KL05L-LED is a LED surgical light rated at 90,000 lux at 1 m — the highest output in the KL05L/KL04L series.
The six-hole LED lamp head provides illumination depth ≥ 500 cm and total irradiance <6 mW/m²lx.
Color temperature is 4500 ± 500 K; color rendering index is 100 ≥ Ra ≥ 85; rated bulb voltage is 24 V.
Power supply is 220 V ± 10%, 50 Hz; input power is 36 VA — significantly lower than the halogen KL05L's 150 VA.

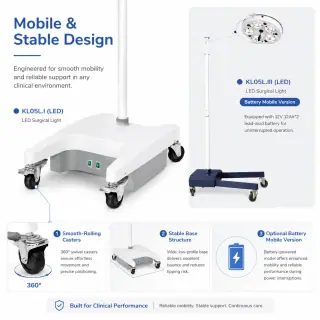

The mobile variant (KL05L.I LED) integrates a 12 V, 12 AH × 2 lead-acid battery for continued operation during power interruptions.
The KL05L-LED is available in mobile, ceiling-mounted and wall-mounted configurations to suit different clinical environments.

Key features

90,000 Lux LED Outputhighest illumination in the KL05L/KL04L range, providing maximum visibility for complex and deep surgical procedures.

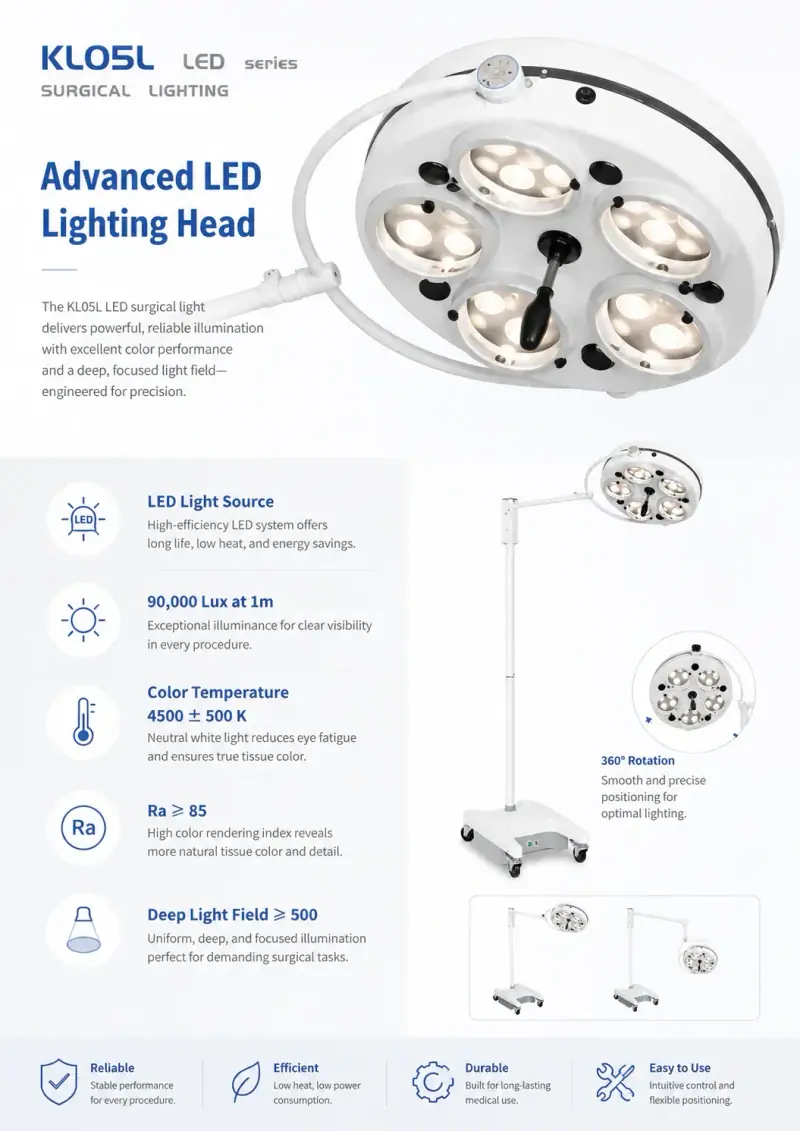

Six-Hole Multi-Reflector LED Headsix independent LED reflector bays produce a smooth, shadow-free light field across the surgical site.
Illumination Depth ≥500 cmeffective light delivery into deep surgical cavities for abdominal, thoracic and pelvic operations.
Integrated Battery Backup (Mobile KL05L.I LED)12V 12AH × 2 lead-acid battery provides continuous operation during power interruptions.
Very Low Power Consumption36 VA input power versus 150 VA for the halogen equivalent; significantly reduces energy cost and infrastructure load.
Ra ≥ 85 Color Rendering4500 ± 500 K natural white light for accurate tissue, blood and anatomical color differentiation.
Three Mounting Optionsmobile floor (KL05L.I LED), ceiling-mounted (KL05L LED) and wall-mounted (KL05L.III LED) configurations.
Stable and Uniform LED Lightingadvanced LED optical system ensures consistent light output and even illumination across the surgical field.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

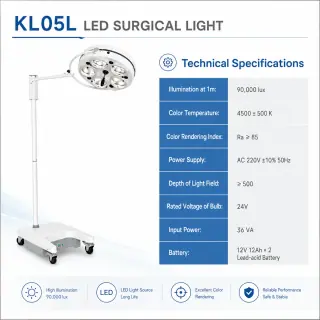

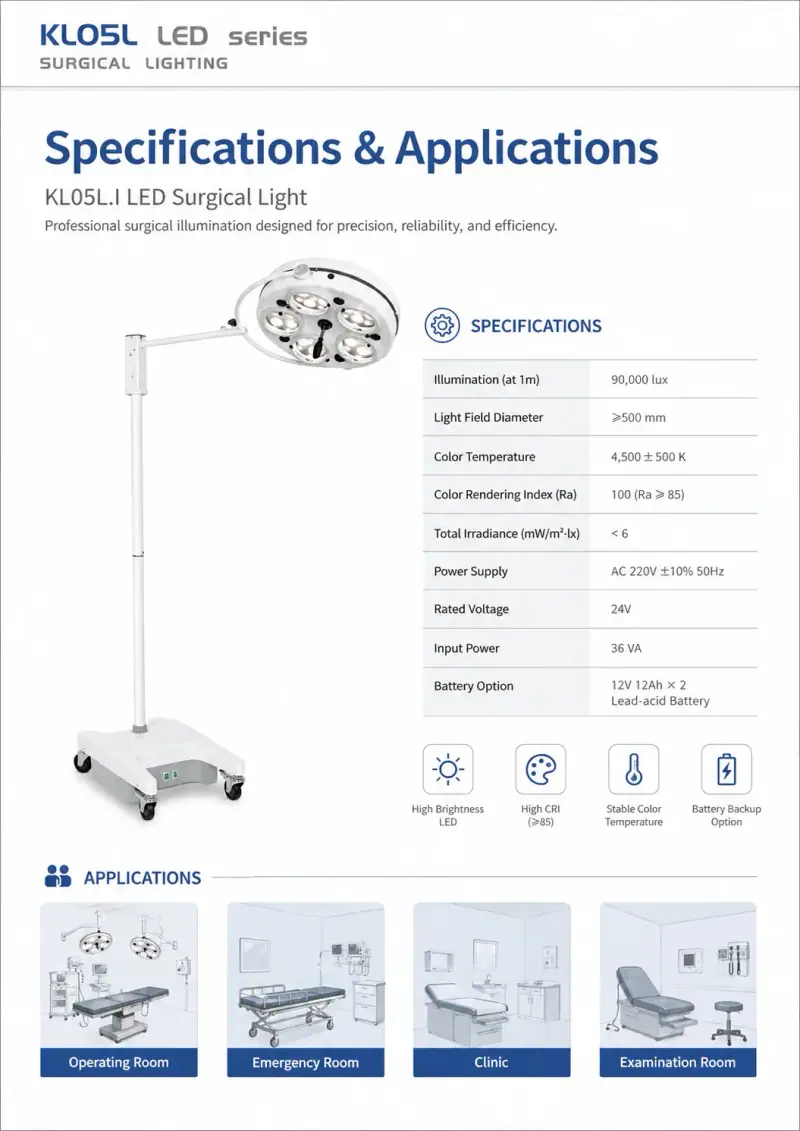

KL05L-LED technical specifications
Model	KL05L (LED)
Illumination at 1 m (lux)	90,000
Optional color temperature (K)	4500 ± 500
Color rendering index (Ra)	100 ≥ Ra ≥ 85
Light source	LED
Power supply (AC)	220 V ± 10%, 50 Hz
Input power (VA)	36
Total irradiance (mW/m²lx)	<6
Illumination depth (cm)	≥500
Rated voltage of bulb	24 V
Battery (mobile variant)	12V 12AH × 2 lead-acid battery

Applications

The KL05L-LED LED surgical light is suited for modern operating theatres requiring high-output LED illumination with low energy consumption: general surgery, orthopaedic, cardiovascular, thoracic and neurosurgery suites, outpatient procedure rooms, laparoscopy rooms and emergency surgical areas. The battery-equipped mobile variant is particularly valued in facilities with intermittent power supply, as a primary mobile OR light and as mandated standby surgical lighting.

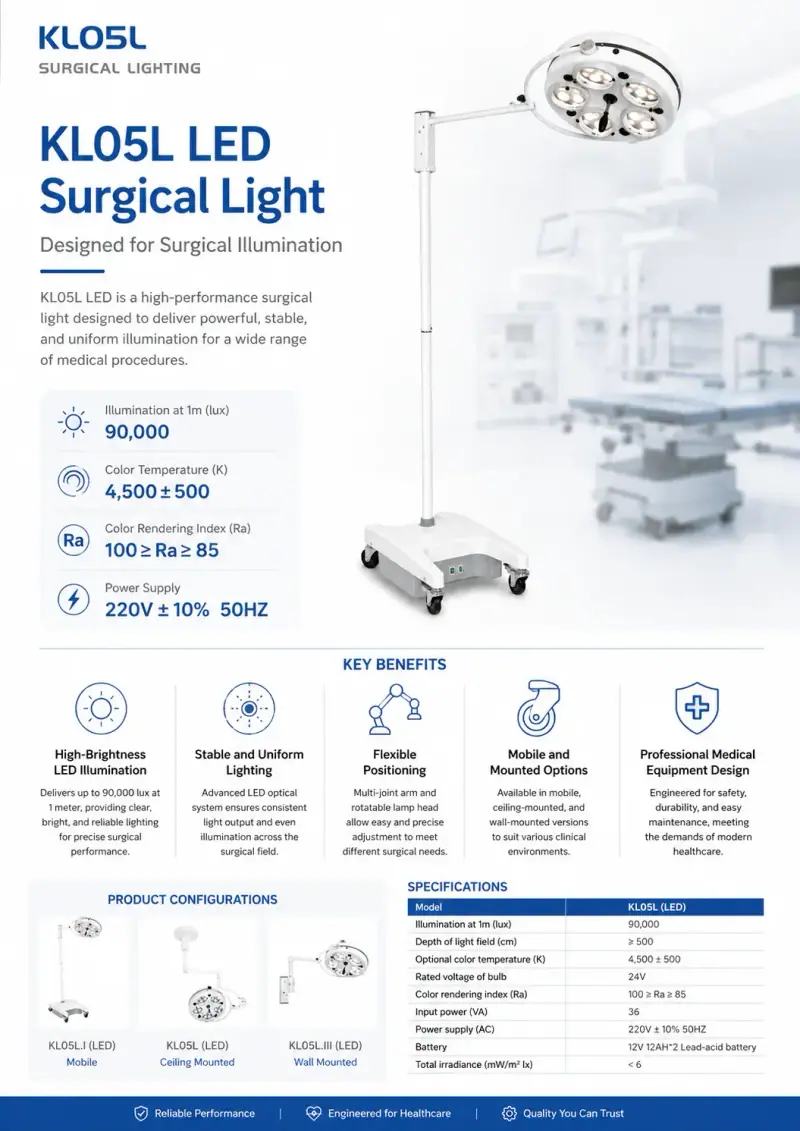

Detail sheets

Select a sheet to view it full screen.

Frequently asked questions

What is the KL05L-LED used for?

The Keling KL05L-LED is an LED surgical light for operating theatre illumination. It delivers 90,000 lux through a six-hole LED multi-reflector lamp head with illumination depth ≥ 500 cm, providing high-efficiency, bright, shadowless light for general and specialist surgical procedures in hospitals.

Does the KL05L-LED have a battery backup?

Yes. The mobile configuration (KL05L.I LED) integrates a 12 V, 12 AH × 2 lead-acid battery that automatically powers the lamp during mains power interruptions. This ensures uninterrupted surgical illumination during critical procedures in the event of a power outage.

How does the KL05L-LED compare to the halogen KL05L in energy use?

The KL05L-LED consumes 36 VA versus 150 VA for the halogen KL05L — a reduction of approximately 76% in input power. Despite lower energy consumption, the LED version delivers 90,000 lux compared to the halogen's 80,000 lux, demonstrating the efficiency advantage of LED technology over cold-light halogen for the same lamp head geometry.

Are the KL05L-LED models available for international export and bulk orders?

Yes. Keling Medical supplies LED surgical lights to hospitals, operating theatre contractors and medical distributors globally through its Shanghai export center. All three KL05L-LED configurations are available for project and OEM orders; contact Keling Medical at our export team for specifications and pricing.
