KL-LED-MSTZ5 Mobile Five-Petal LED Light

The Keling KL-LED-MSTZ5 is a mobile floor-standing five-petal-dome LED shadowless operating lamp delivering 160,000 lux at 1 m, with 45 imported LED bulbs rated for 50,000 hours, manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospitals, clinics and medical distributors worldwide. The five-lobe dome head geometry provides enhanced shadow elimination, and a dedicated endoscopy mode reduces output to 10,000 lux for minimally invasive procedures.

Illuminance at 1 m: 160,000 lux
Colour temperature: 3,000–6,700 K
Colour rendering: Ra ≥ 85
Mounting: Mobile

Request a quotation WhatsApp

Add to comparison

Overview

The KL-LED-MSTZ5 is Keling Medical's mobile five-petal-dome LED surgical light, offering a higher LED count and five-lobe dome architecture compared to the four-petal KL-LED-MSTZ4 sibling. The five-petal dome directs light onto the surgical field from five discrete angular positions, further reducing residual shadow in deep or complex operative cavities. With 45 imported LEDs, the lamp achieves 160,000 lux at 1 m across a light field diameter of 10–28 cm, delivering a color rendering index of Ra ≥ 85.

The KL-LED-MSTZ5 uses digital stepless regulation for brightness control—not stepped switches—ensuring smooth, flicker-free transitions across the full output range. Color temperature is continuously adjustable from 3,000 K to 6,700 K, covering warm white through daylight spectra to support tissue color accuracy during different procedure types. The nano-coated heat sink maintains a heat-to-light ratio of ≤3.2 mW/m²lx, minimizing radiant heat transfer to the surgical site. The imported balance arm design provides flexible up-and-down adjustment and holds position without drift during extended procedures.

Built on a mobile floor stand with castors, the KL-LED-MSTZ5 requires no ceiling installation and can be repositioned between rooms or procedure zones. The removable handle sheath supports rapid sterile field management. Two variants are available for procurement: KL-LED·MSTZ5 (single head) and KL-LED·MSTZ5D (dual head). Ceiling height requirements of 270–320 cm apply when the unit is used in a room with overhead fixtures, though the mobile stand itself operates independently of ceiling height.

Quick facts

The Keling KL-LED-MSTZ5 produces 160,000 lux of illumination at 1 m working distance under standard operating mode.
Keling Medical equips the KL-LED-MSTZ5 with 45 imported LED bulbs rated for an average service life of 50,000 hours.
The five-petal (five-lobe) dome head of the KL-LED-MSTZ5 provides additional shadow-filling coverage compared to four-petal configurations.
The KL-LED-MSTZ5 includes a dedicated endoscopy mode that reduces output to 10,000 lux at 1 m for minimally invasive and laparoscopic procedures.
Color temperature on the KL-LED-MSTZ5 is steplessly adjustable from 3,000 K to 6,700 K to match tissue differentiation and surgeon preference.
The KL-LED-MSTZ5 runs on a universal 100–240 V / 50–60 Hz power supply and consumes a maximum of 90 W.

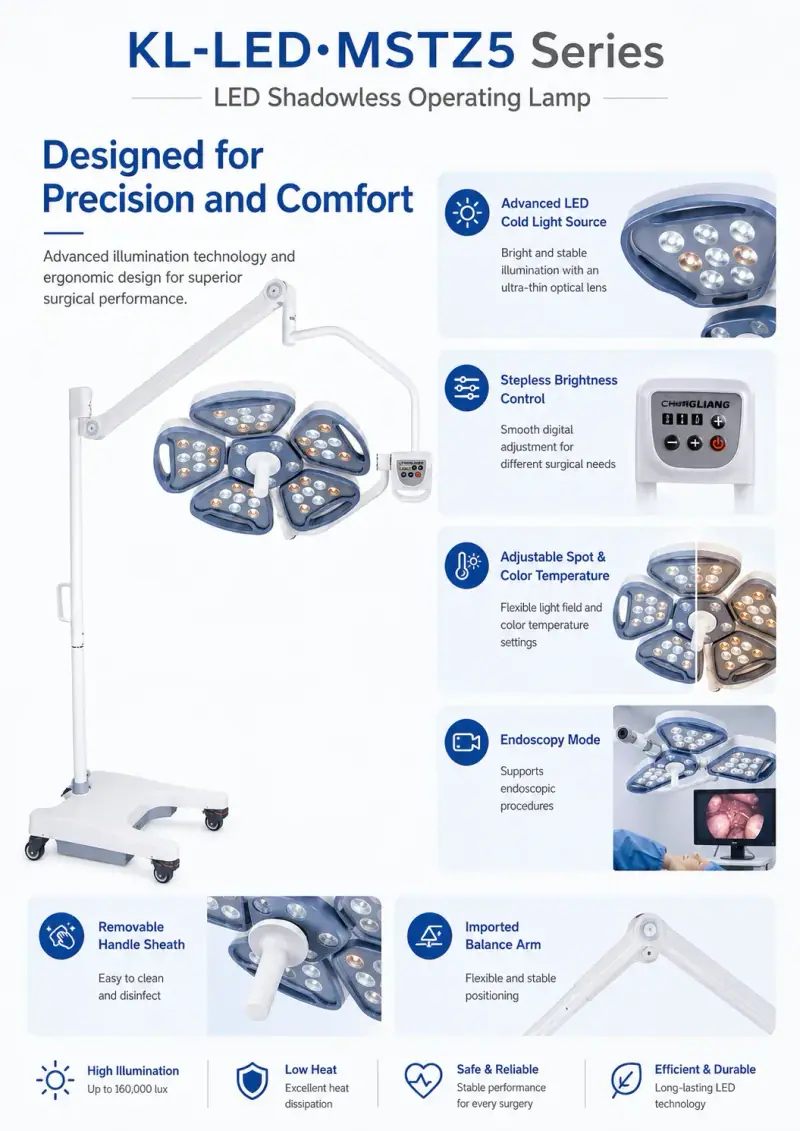

Key features

Five-Petal Dome DesignFive-lobe shadowless head directs light from five angles onto the surgical field, providing superior shadow elimination in deep and complex body cavities compared to four-petal configurations.
160,000 Lux Peak IlluminationDelivers 160,000 lux at 1 m working distance for high-intensity illumination requirements in major open surgical procedures.

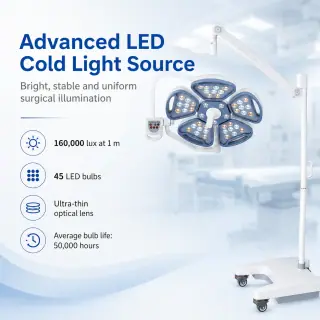

45 Imported LED Cold Light SourceHigher LED count (45 vs. 39 in the MSTZ4) increases redundancy and luminous uniformity across the field; ultra-thin optical lenses maximize efficiency.

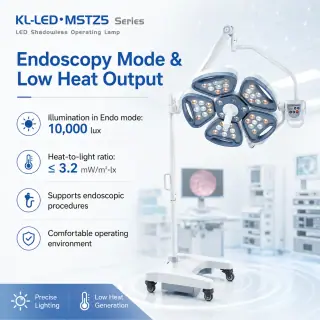

Endoscopy ModeDedicated low-brightness mode reduces output to 10,000 lux at 1 m to preserve endoscopic camera image quality during minimally invasive procedures.

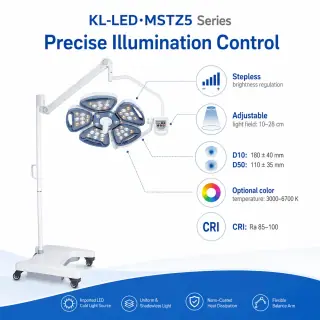

Digital Stepless Brightness RegulationContinuous, smooth, flicker-free brightness adjustment via digital control allows precise intensity setting without perceptible steps.
Adjustable Color Temperature (3,000–6,700 K)Full warm-to-daylight spectrum adjustment supports surgeon preference and tissue differentiation for different case types.
Nano-Coated Heat SinkNano surface treatment maximizes heat dissipation area, keeping LED junction temperatures low and extending service life to 50,000 hours.

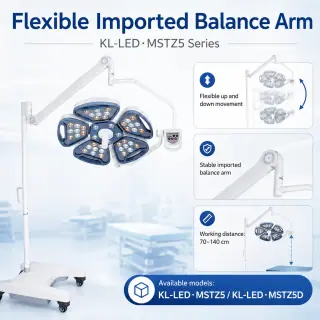

Imported Balance ArmFlexible up-and-down adjustment with position-hold ensures the lamp head remains where positioned throughout long procedures.

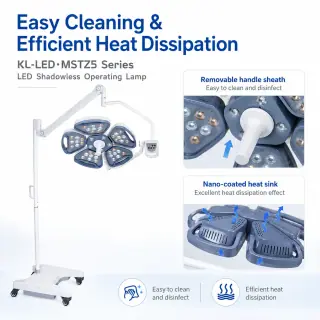

Removable Handle SheathDetachable sterile handle sheath is easy to remove for autoclaving or chemical disinfection between procedures.
Mobile Floor Stand with CastorsSelf-contained mobile base with locking castors allows deployment and repositioning without ceiling mounting hardware.
Universal Power Supply100–240 V / 50–60 Hz input is compatible with medical-grade power infrastructure worldwide.
Dual-Head Variant AvailableKL-LED·MSTZ5D provides a second lamp head on the same mobile platform for procedures requiring illumination from multiple directions.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

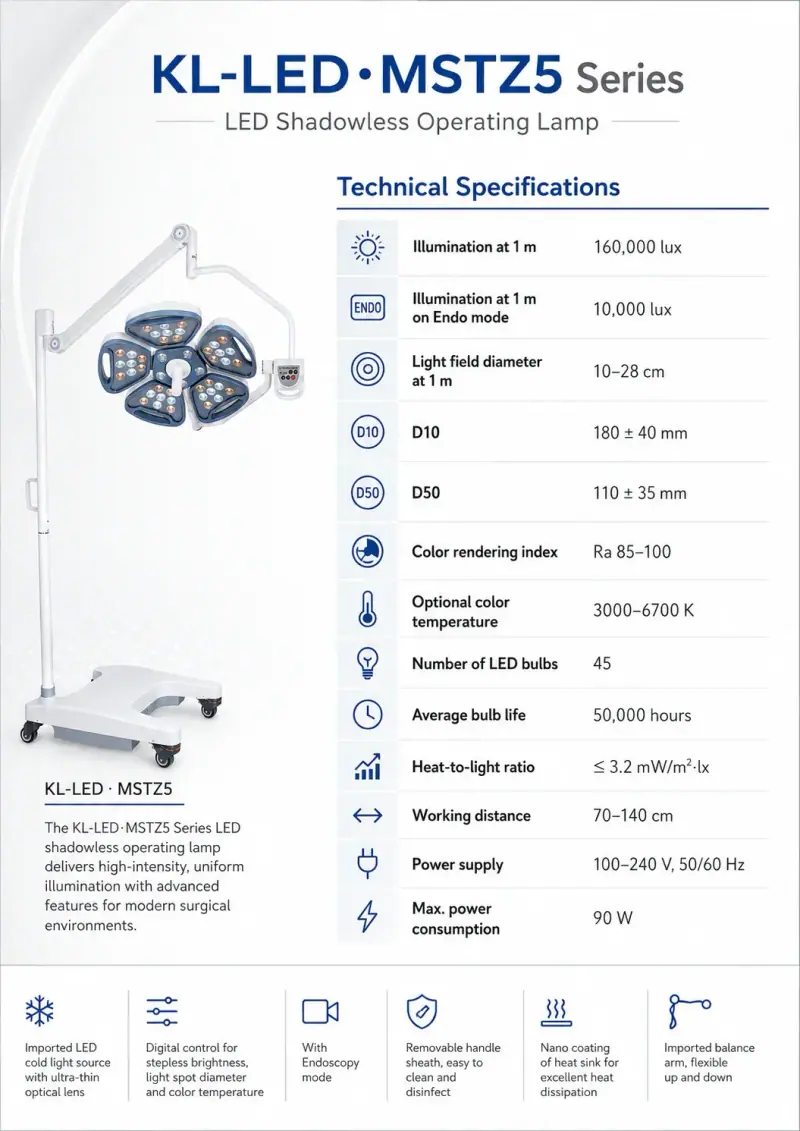

KL-LED-MSTZ5 technical specifications
Model	KL-LED·MSTZ5
Illumination at 1 m (standard mode)	160,000 lux
Illumination at 1 m (Endo mode)	10,000 lux
Light field diameter at 1 m	10–28 cm
Light field diameter D10	180 ± 40 mm
Light field diameter D50	110 ± 35 mm
Color rendering index (Ra)	100 ≥ Ra ≥ 85
Color temperature range	6,700 ≥ Tc ≥ 3,000 K
Number of LED bulbs	45
Average bulb life	50,000 hours
Heat-to-light ratio	≤ 3.2 mW/m²lx
Working distance	70–140 cm
Power supply	100–240 V, 50/60 Hz
Max. power consumption	90 W
Ceiling height for installation	270–320 cm
Available variants	KL-LED·MSTZ5 / KL-LED·MSTZ5D

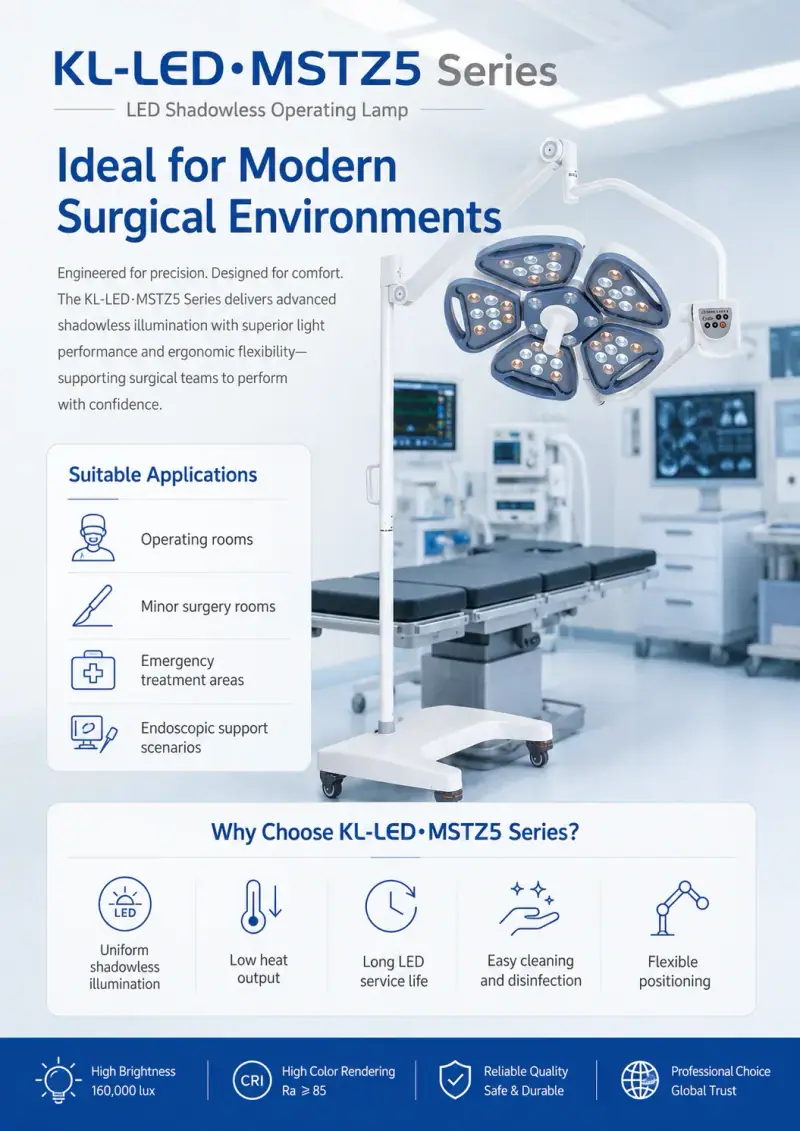

Applications

The KL-LED-MSTZ5 mobile surgical light is designed for facilities requiring high-intensity, shadow-free illumination with the flexibility of a repositionable floor-standing unit. The five-petal dome and endoscopy mode make it particularly suited to facilities handling a mixed case load of open and minimally invasive procedures.

Typical deployment settings include:

General, abdominal and colorectal surgery operating theatres
Laparoscopic and minimally invasive surgery suites requiring endoscopy mode
Neurosurgery and spinal surgery rooms requiring deep-cavity shadow elimination
Orthopedic and trauma operating rooms
Gynecology, urology and thoracic procedure rooms
Outpatient surgery centers and ambulatory care facilities
Mobile surgical units and field hospitals
Facilities undergoing construction or ceiling mounting renovation

Detail sheets

Select a sheet to view it full screen.

Frequently asked questions

What is the KL-LED-MSTZ5 used for?

The Keling KL-LED-MSTZ5 is a mobile LED shadowless operating lamp used as the primary light source during surgical procedures. It delivers 160,000 lux of shadow-free illumination at 1 m from its five-petal dome head, with 45 LEDs and an endoscopy mode for minimally invasive cases. It is suitable for general surgery, laparoscopy, neurosurgery, orthopedics and gynecology in hospitals, clinics and ambulatory surgery centers.

How does the five-petal dome of the KL-LED-MSTZ5 differ from a four-petal dome?

The KL-LED-MSTZ5 five-petal dome positions LED clusters at five angular lobe positions around the central axis, compared to four positions in the KL-LED-MSTZ4. This additional lobe provides an extra direction of light fill, further reducing residual shadow in irregular or deep surgical cavities where a four-petal pattern may leave shadow at certain angles. The KL-LED-MSTZ5 also carries 45 LEDs versus 39 on the MSTZ4, increasing total luminous output distribution and redundancy.

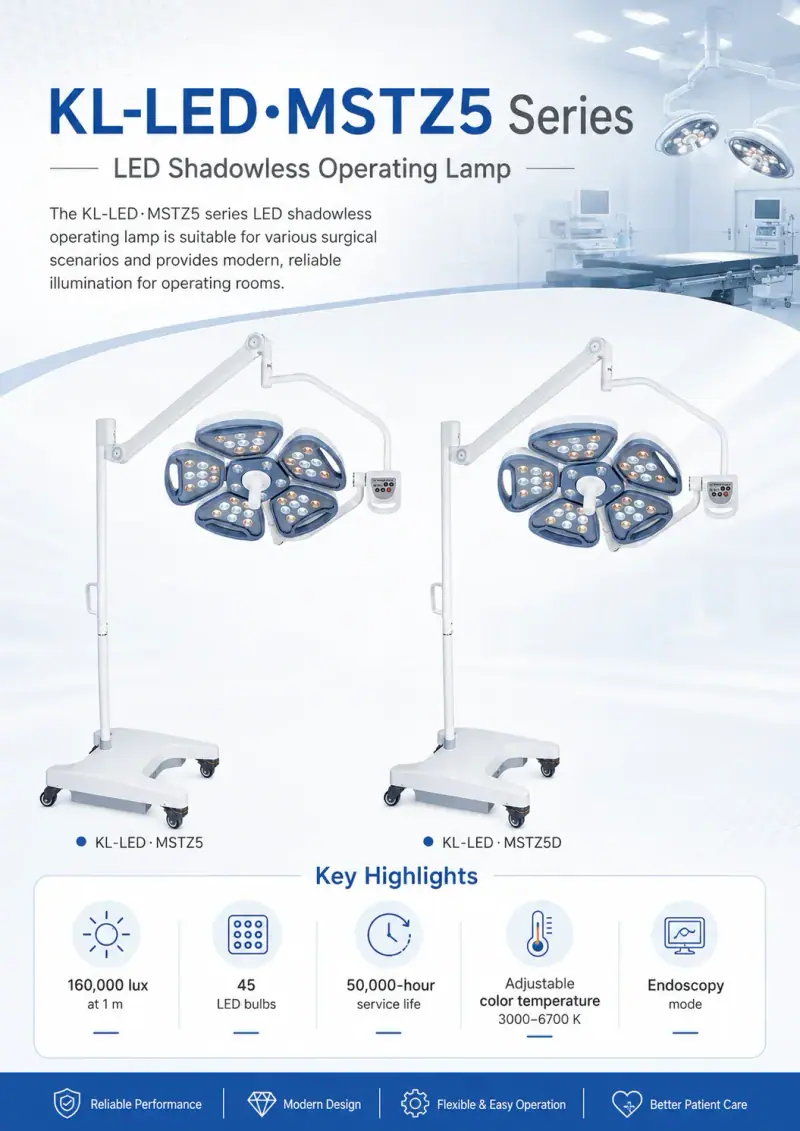

What is the difference between the KL-LED-MSTZ5 and the KL-LED-MSTZ5D?

The KL-LED-MSTZ5 is the single-dome mobile configuration. The KL-LED-MSTZ5D is the dual-dome version, mounting two five-petal lamp heads on the same mobile floor-stand platform. The dual-dome variant is specified for procedures requiring illumination from two independently adjustable light sources simultaneously, such as complex abdominal or thoracic cases with multiple operating surgeons.

Can distributors or hospitals purchase the KL-LED-MSTZ5 in volume or on OEM terms?

Yes. Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) supplies the KL-LED-MSTZ5 to hospitals, group purchasing organizations and medical equipment distributors on a wholesale basis. OEM and private-label arrangements are supported. For volume pricing, lead times, CE documentation and export terms, contact Keling Medical via our export team.
