KL-LED-MST45 Mobile LED Dental & Minor Surgery Light

The Keling KL-LED-MST45 is a mobile single-dome LED surgical lamp for dental implant and minor surgery, delivering ≥80,000 lux at 1 m with one-key anti-curing function and a precision spectral filter that eliminates UV and blue light to extend composite resin curing time, manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for dental clinics, oral surgery centers, and minor-surgery facilities worldwide. Keling Medical has manufactured CE-marked surgical equipment since 1996.

Illuminance at 1 m: 80,000 lux
Colour temperature: 3,000–6,700 K
Colour rendering: Ra ≥ 85
Mounting: Mobile

Request a quotation WhatsApp

Add to comparison

Overview

The Keling KL-LED-MST45 is a floor-standing mobile LED surgical lamp purpose-built for dental implant surgery and minor surgical procedures. While conventional surgical lights can prematurely activate photopolymerization in dental restoration composites, the KL-LED-MST45 incorporates precision spectral band control that filters out UV and blue light wavelengths — the primary triggers for composite resin curing. This anti-curing capability is activated instantly via a one-key control, giving dental surgeons extended working time with composite materials without requiring the lamp to be repositioned or powered down.

Mounted on a mobile floor stand, the KL-LED-MST45 can be positioned alongside any dental chair or minor-surgery table and repositioned between treatment rooms as needed. The lamp head angle is adjustable over ≥240°, giving clinicians exceptional flexibility to direct light precisely into the oral cavity or wound field. The imported ultra-thin optical lens and imported LED cold light source produce ≥80,000 lux at 1 m across a light field of 10–20 cm (adjustable), with a light depth of ≥100 cm and a heat-to-light ratio of ≤3.2 mW/m²lx — ensuring the illumination field stays bright and cool throughout long implant procedures.

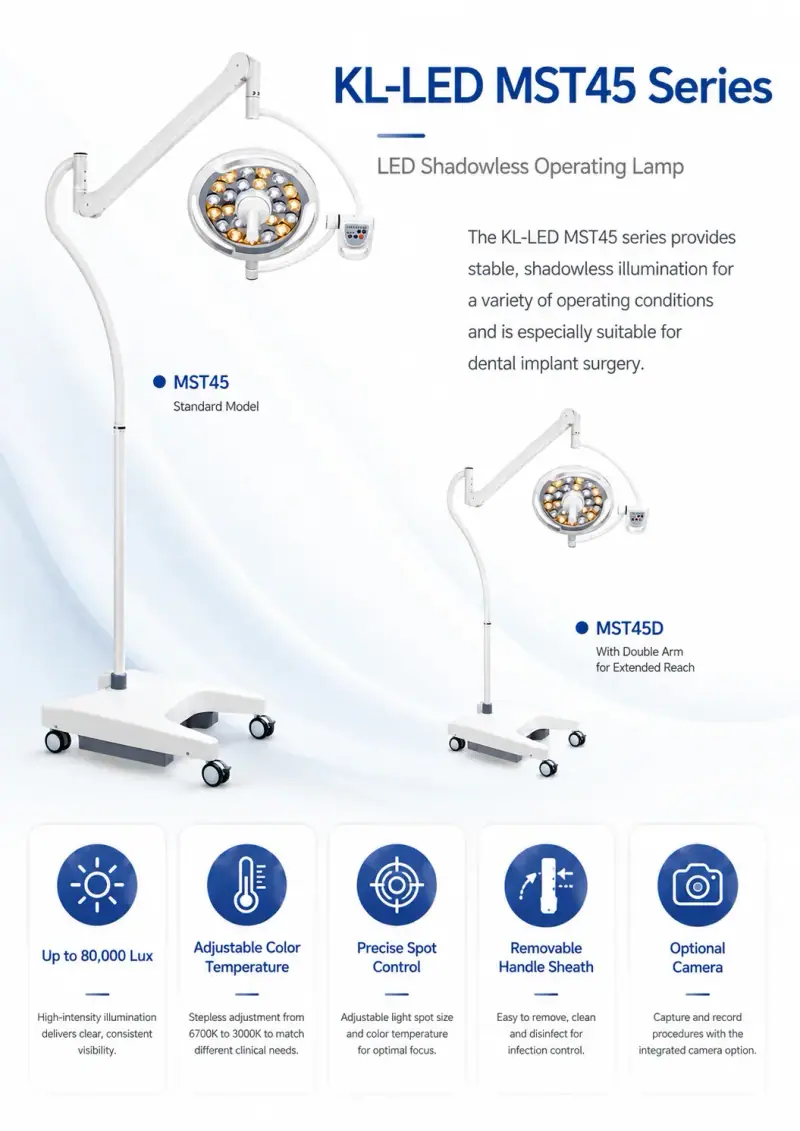

The KL-LED-MST45 features digital stepless brightness regulation and adjustable spot diameter and color temperature (3,000–6,700 K), enabling the dental team to optimize the light quality for different tissue types and restorative materials. The removable handle sheath simplifies cleaning and disinfection between patients. An optional camera accessory is available, supporting documentation and telemedicine workflows. A compact variant, the KL-LED-MST45D, is also offered by Keling Medical for space-constrained environments.

Quick facts

The Keling KL-LED-MST45 delivers ≥80,000 lux at 1 m, with a light field diameter of 10–20 cm adjustable at 1 m working distance.
The KL-LED-MST45 uses one-key anti-curing function to instantly switch to a UV/blue-light-filtered mode, preventing premature curing of dental composite resins.
The KL-LED-MST45 filters out UV and blue light wavelengths through precise spectral band control, effectively extending the working time for dental restoration composites.
Light depth on the KL-LED-MST45 is ≥100 cm, and the lamp holder angle is adjustable over ≥240°, providing wide coverage for dental chair and minor-surgery table positioning.
Color temperature on the KL-LED-MST45 is continuously adjustable from 3,000 K to 6,700 K with digital stepless brightness control via the integrated panel.
The KL-LED-MST45 input power is 36 ± 10% VA and operates on universal voltage, making it energy-efficient and globally compatible.

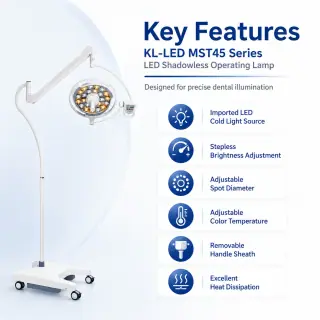

Key features

One-key anti-curing functionSingle-touch control instantly switches the lamp to a UV/blue-light-filtered output, preventing premature photopolymerization of dental composite resins.
UV and blue light filterPrecise spectral band control eliminates the wavelengths responsible for composite curing, extending the working time of dental restoration materials without sacrificing illuminance.
Especially designed for dental implant surgeryOptical and spectral configuration optimized for oral surgical field illumination, composite resin placement, and implant positioning.

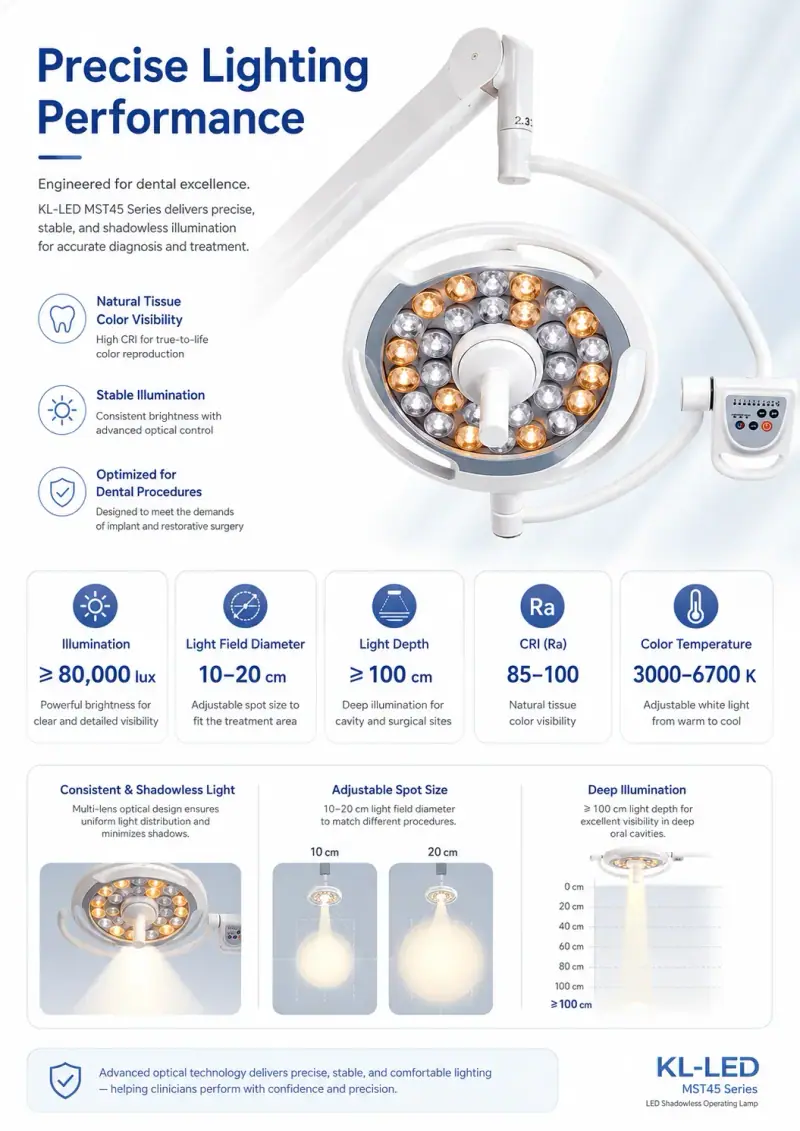

Imported LED cold light source with ultra-thin optical lensHigh-output LED array with slim-profile lens delivers ≥80,000 lux with minimal infrared emission and low heat-to-light ratio ≤3.2 mW/m²lx.
Digital stepless brightness adjustmentInfinitely variable brightness control via digital panel allows precise dimming without discrete steps.
Adjustable spot diameter and color temperatureLight field diameter (10–20 cm at 1 m) and color temperature (3,000–6,700 K) are independently adjustable to suit the clinical task.

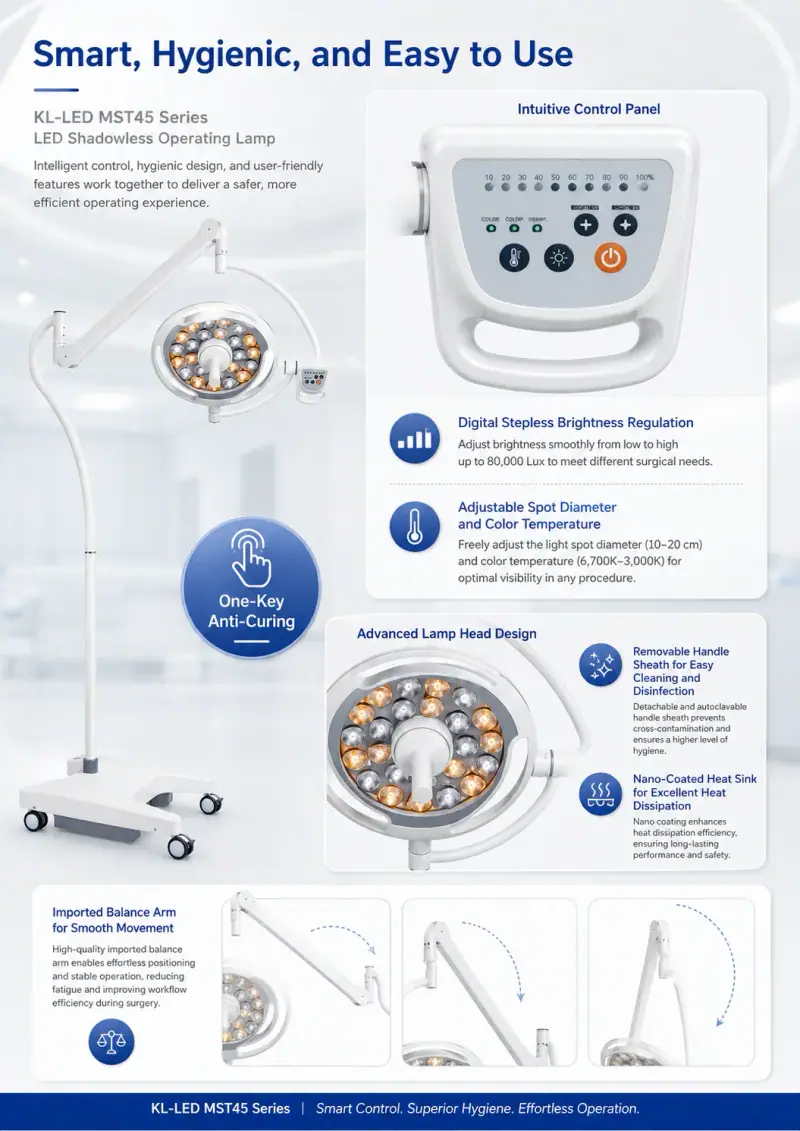

Removable handle sheathDetachable handle cover simplifies cleaning and disinfection between patients.
Nano-coated heat sinkNano coating on heat sink components ensures excellent thermal management, protecting LED life.

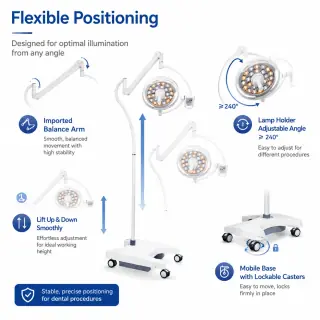

Imported balance arm, ≥240° angle adjustmentWide-range articulating arm with imported spring mechanism allows easy lift and positioning over dental chairs and procedure tables.
Light depth ≥100 cmSufficient illumination depth to reach into oral cavities and minor-surgery wound fields at typical working distances.

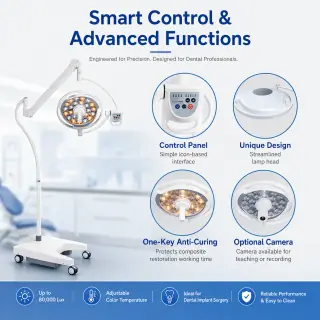

Camera optionalCompatible camera accessory available for clinical documentation, training, and telemedicine applications.
Mobile floor standNo ceiling installation required; locking base enables rapid deployment and repositioning across treatment rooms.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

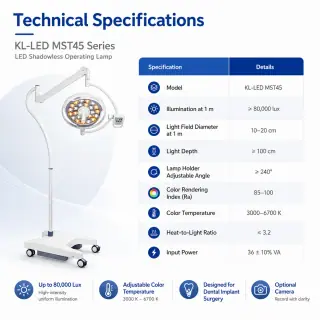

KL-LED-MST45 technical specifications
Model	KL-LED·MST45
Illumination at 1 m	≥ 80,000 lux
Light field diameter at 1 m	10–20 cm (adjustable)
Light depth	≥ 100 cm
Adjustable angle of lamp holder	≥ 240°
Color rendering index Ra	100 ≥ Ra ≥ 85
Color temperature range	6,700 ≥ Tc ≥ 3,000 K
Heat-to-light ratio	≤ 3.2 mW/m²lx
Input power	36 ± 10% VA
Anti-curing function	One-key UV/blue light filter
Spectral filter	UV and blue light eliminated
Mount type	Mobile floor stand

Applications

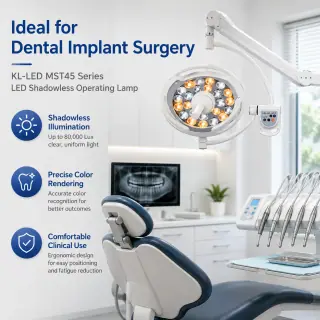

The Keling KL-LED-MST45 mobile LED surgical lamp is purpose-designed for dental implant surgery and minor surgical procedures where precise spectral control is as important as illuminance. Its anti-curing UV/blue filter and wide-angle arm articulation make it the primary-choice mobile surgical light for dental and oral-surgery settings, while its high lux output and adjustable color temperature extend its utility to a range of outpatient minor-surgery applications.

Typical use settings include: - Dental implant surgery clinics and oral surgery centres - Periodontal and endodontic procedure rooms - Restorative dentistry suites requiring composite resin placement under surgical illumination - Maxillofacial and oral-maxillofacial surgery theatres - ENT procedure rooms and minor-surgery units - Dermatology and plastic surgery clinics performing office-based procedures - Outpatient procedure centres and ambulatory surgery units - Teaching and telemedicine-equipped dental clinics (with optional camera accessory)

Dental implant surgery clinics and oral surgery centres
Periodontal and endodontic procedure rooms
Restorative dentistry suites requiring composite resin placement under surgical illumination
Maxillofacial and oral-maxillofacial surgery theatres
ENT procedure rooms and minor-surgery units
Dermatology and plastic surgery clinics performing office-based procedures
Outpatient procedure centres and ambulatory surgery units
Teaching and telemedicine-equipped dental clinics (with optional camera accessory)

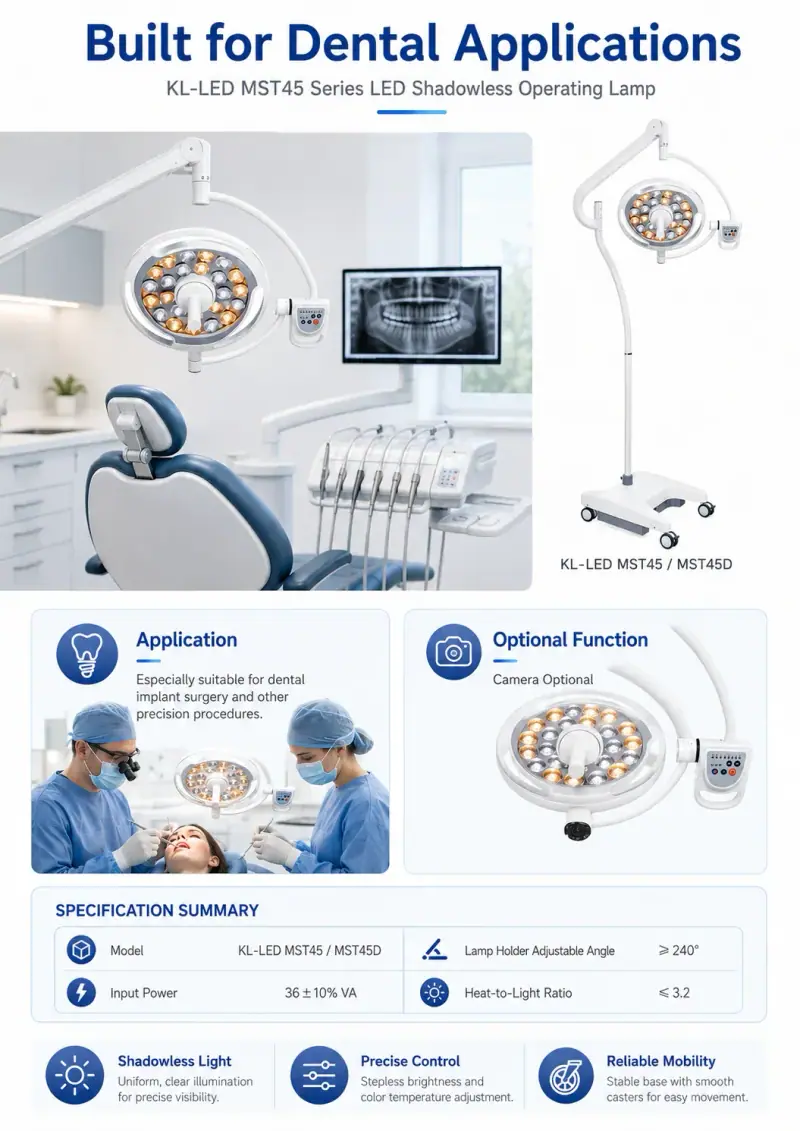

Detail sheets

Select a sheet to view it full screen.

Frequently asked questions

What is the KL-LED-MST45 used for?

The Keling KL-LED-MST45 is a mobile LED surgical lamp designed specifically for dental implant surgery and minor surgical procedures. It provides ≥80,000 lux of bright, color-accurate illumination while offering a one-key anti-curing function that filters UV and blue light to prevent premature curing of dental composite restoration materials. The KL-LED-MST45 is mounted on a mobile floor stand and positioned alongside dental chairs, surgical tables, or examination chairs without requiring a ceiling installation.

How does the anti-curing function on the KL-LED-MST45 work?

The Keling KL-LED-MST45 uses precise spectral band control to filter out the UV and blue light wavelengths (approximately 400–500 nm) that trigger photopolymerization in dental composite resins. When the dental surgeon activates the one-key anti-curing function, the lamp switches instantly to filtered output. This extends the working time available for placing, shaping, and checking composite restorations before intentional curing with a separate curing light — a significant clinical advantage during complex implant-supported restorations.

What color temperature range and spot size does the KL-LED-MST45 offer?

The Keling KL-LED-MST45 provides continuously adjustable color temperature from 3,000 K (warm white) to 6,700 K (daylight) and an adjustable light field diameter of 10–20 cm at 1 m working distance. Both adjustments are made digitally via the integrated control panel using stepless regulation. This allows the dental or surgical team to narrow the field over a small implant site or widen it for larger wound fields, and to adjust the color temperature to match tissue visualization needs or the restorative material being used.

Is the KL-LED-MST45 available for OEM, wholesale, or export?

Yes. Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) supplies the KL-LED-MST45 to dental clinics, hospitals, group purchasing organizations, and medical equipment distributors worldwide through OEM and wholesale channels. The KL-LED-MST45 is CE marked and manufactured in an ISO 13485-certified production facility in Jiangsu, China. A compact variant (KL-LED-MST45D) and optional camera accessory are also available. Export and OEM inquiries can be directed via our export team.
