KL-LED-DTR78 Double-Dome LED Surgical Light

The Keling KL-LED-DTR78 is a double-dome ceiling-mounted LED shadowless operating lamp with integrated camera system delivering 160,000 lux per dome, using OSRAM LEDs with color rendering index Ra≥85 (R9≥97, R11≥97), manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospitals, clinics, and medical distributors. The KL-LED-DTR78 features a titanium-alloy balance arm with no-drift positioning, green light mode for cardiac and neurosurgery, and accepts universal 110–240 V power supply.

Illuminance at 1 m: 160,000 lux
Colour temperature: 3,000–6,700 K
Colour rendering: Ra ≥ 85, R9/R11 ≥ 97
Mounting: Ceiling

Request a quotation WhatsApp

Add to comparison

Overview

The Keling KL-LED-DTR78 is a double-dome ceiling-mounted LED shadowless operating lamp with integrated camera system, designed for hospitals and surgical centers requiring high-performance illumination combined with intraoperative video documentation. Each primary dome delivers 160,000 lux at 1 m using OSRAM LED components. The titanium-alloy balance arm ensures stable, drift-free positioning throughout lengthy procedures — a critical feature in high-precision surgery where lamp movement between adjustments must be eliminated.

The KL-LED-DTR78 incorporates a computer-programmed optical arrangement for high shadowless rate, and high thermal conductivity heat dissipation technology to maintain a low temperature rise within the fixture and at the operative site. Optical PC lenses on each LED element provide anti-glare performance for the surgical team. The heat-to-light ratio is ≤3.2 mW/m²lx, limiting radiant heat exposure during long procedures.

The KL-LED-DTR78 offers a comprehensive set of illumination modes: an Endo mode at 15,000 lux for minimally invasive procedures, a green light mode (R11≥97) specifically engineered for cardiac and neurosurgery disciplines requiring high green color rendering, and continuously adjustable color temperature from 3,000 K to 6,700 K. Illumination automatic compensation activates when occlusion is detected, maintaining consistent brightness at the operative field. The RI index function is specifically designed for high color-rendering tasks including deep and difficult incisions where tissue color discrimination is most critical.

Quick facts

The Keling KL-LED-DTR78 produces 160,000 lux per dome at 1 m working distance using OSRAM LED components.
The KL-LED-DTR78 includes a green light mode with green color rendering index R11≥97 for cardiac surgery and neurosurgery.
The KL-LED-DTR78 contains 84 LEDs in dome 1 and 144 LEDs in dome 2, with an average rated life of 50,000 hours.
The KL-LED-DTR78 features a titanium-alloy balance arm designed for no-drift positioning and stable light placement during surgery.
The KL-LED-DTR78 light field diameter is electrically adjustable from 20 cm to 30 cm with a combined L1+L2 depth of illumination of 150 cm.
Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) manufactures the KL-LED-DTR78 with an integrated camera system for video documentation and telemedicine applications.

Key features

OSRAM LED componentsDouble-dome configuration uses OSRAM LEDs for reliable, high-fidelity output: 84 LEDs in dome 1, 144 LEDs in dome 2.
Titanium-alloy balance arm, no-driftTitanium-alloy arm maintains stable lamp position without drift during procedures, eliminating the need for repeated repositioning.
Integrated camera systemBuilt-in camera supports intraoperative video documentation, recording, and telemedicine or remote-viewing applications.

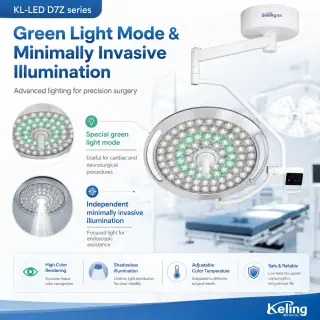

Green light mode (R11≥97)Dedicated mode for cardiac surgery and neurosurgery requiring precise color rendering of vascular and neural tissue.
RI index functionSpecially designed for high color-rendering tasks including deep and difficult incisions, with independently controlled illumination to show color differences and fine tissue detail.
Minimally invasive (Endo) modeIndependently controlled Endo illumination at 15,000 lux, electrically adjusted, applicable to all kinds of minimally invasive surgery.

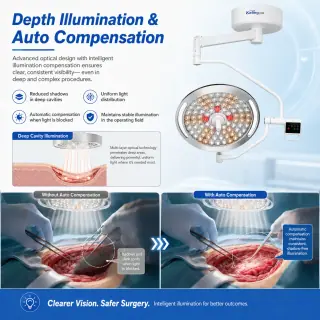

Illumination automatic compensationAutomatically compensates when doctor's head covers the light source, maintaining ideal operative brightness from unobstructed LED segments.
Computer-programmed optical arrangementHigh shadowless rate achieved through optimized LED geometry.
Anti-glare optical PC lensPC lenses on each LED element reduce glare and improve team visual comfort.
High thermal conductivity heat dissipationLow temperature rise technology protects LED life and limits heat-to-light ratio to ≤3.2 mW/m²lx.

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

KL-LED-DTR78 technical specifications
Model	KL-LED·DTR78
Illumination at 1 m (lux)	160,000 / 160,000
Illumination at 1 m — Endo mode (lux)	15,000 (electrically adjusted)
Light field diameter (cm)	20–30 (electrically adjusted)
Light field diameter D10 (mm)	220±40 / 220±40
Light field diameter D50 (mm)	110±35 / 110±35
L1+L2 Depth of illumination (cm)	150

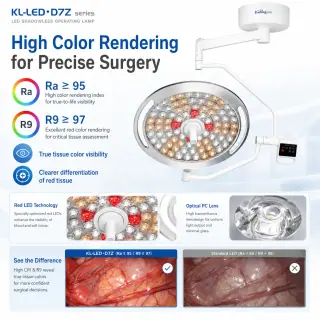

Color rendering index (Ra)	100≥Ra≥85
Red color index R9	≥97
Green color index R11	≥97

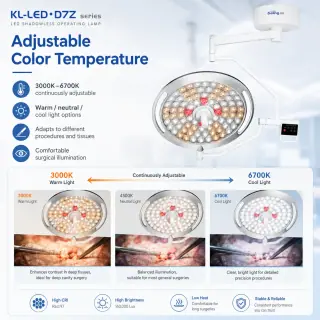

Color temperature (K)	6,700≥Tc≥3,000 (continuously adjustable)
Number of LEDs	84 (dome 1) / 144 (dome 2)
Average LED life (hours)	50,000
Heat-to-light ratio (mW/m²lx)	≤3.2
Power supply	110–240 V, 50/60 Hz
Input power (VA)	150 W (dome 1) / 200 W (dome 2)
Ceiling height for installation (cm)	270–320
Balance arm material	Titanium alloy

Applications

The KL-LED-DTR78 double-dome LED shadowless operating lamp with camera is ceiling-mounted and intended for sterile surgical environments where high-performance illumination, drift-free positioning, and intraoperative video documentation are required. Its green light mode and camera system make it especially suited to:

Cardiac surgery, neurosurgery, general surgery, deep-cavity abdominal and thoracic surgery, laparoscopic and minimally invasive surgery, gynecology, urology, orthopedic surgery, plastic and reconstructive surgery, teaching hospitals and medical centers requiring surgical video documentation, and telemedicine-enabled operating rooms.

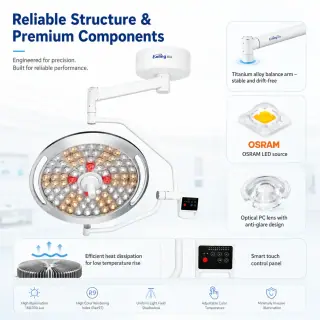

Detail sheets

Select a sheet to view it full screen.

Frequently asked questions

What is the Keling KL-LED-DTR78 used for?

The Keling KL-LED-DTR78 is a double-dome ceiling-mounted LED shadowless operating lamp with an integrated camera system, used in hospital operating rooms for high-intensity illumination combined with intraoperative video recording or telemedicine. It is particularly suited to cardiac surgery and neurosurgery via its green light mode (R11≥97), deep procedures via its 150 cm depth of illumination, and minimally invasive procedures via its Endo mode at 15,000 lux.

What LED brand does the KL-LED-DTR78 use, and how many LEDs are fitted?

The KL-LED-DTR78 uses OSRAM LED components. Dome 1 contains 84 LEDs and dome 2 contains 144 LEDs, both rated for an average service life of 50,000 hours. Both domes deliver 160,000 lux at 1 m working distance with a heat-to-light ratio of ≤3.2 mW/m²lx.

What is the titanium-alloy balance arm feature on the KL-LED-DTR78?

The KL-LED-DTR78 suspension arm is constructed from titanium alloy and engineered for no-drift operation. This means the lamp maintains its set position throughout a procedure without creeping or sagging, eliminating the need for the surgical team to repeatedly reposition the fixture and maintaining consistent illumination geometry during critical operative steps.

Is the KL-LED-DTR78 available for international export and OEM projects?

Yes. The KL-LED-DTR78 is manufactured by Jiangsu Keling Medical Appliances Co., Ltd. at its ISO 13485-certified facility and is available for international distribution. The unit accepts 110–240 V, 50/60 Hz power supply for global compatibility. Keling Medical's Shanghai export center handles OEM, hospital, and distributor procurement enquiries; visit our export team for contact information.
