KL-LED-MDTR78 Mobile LED Surgical Light

The Keling KL-LED-MDTR78 is a mobile double-dome LED shadowless operating lamp delivering 160,000 lux at 1 m with dedicated R9 red (≥97) and R11 green (≥97) auxiliary illumination modes and electrically adjustable light focus, manufactured by Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) for hospitals, clinics, and medical distributors worldwide. Keling Medical has manufactured CE-marked surgical equipment since 1996 from its ISO 13485-certified production base.

Illuminance at 1 m: 160,000 lux
Colour temperature: 3,000–6,700 K
Colour rendering: Ra ≥ 85, R9/R11 ≥ 97
Mounting: Mobile

Request a quotation WhatsApp

Add to comparison

Overview

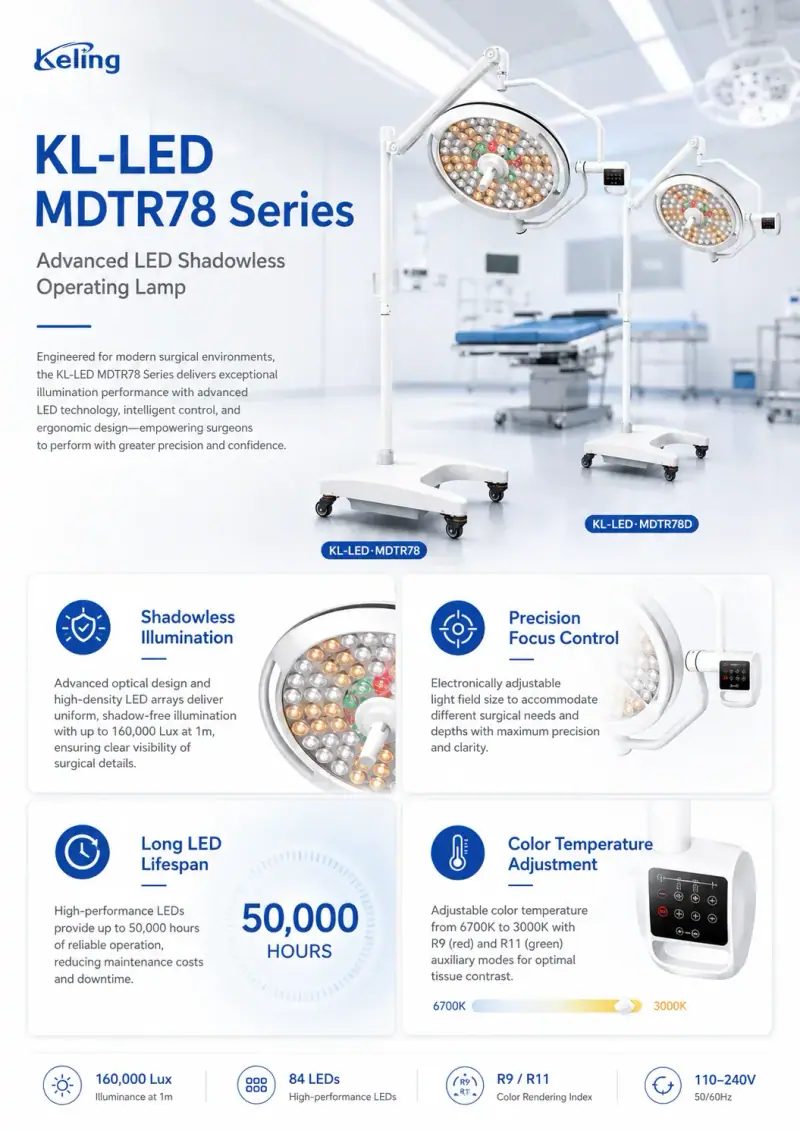

The Keling KL-LED-MDTR78 is a floor-standing mobile double-dome LED shadowless operating lamp that combines premium lux output with advanced color rendering capabilities not found in standard surgical lights. It is the flagship mobile model in the Keling Medical TR-series, distinguished by its dual R9+R11 auxiliary illumination modes and electrically adjustable focus — features that address the needs of surgeons requiring precise, hands-free light field control and accurate color discrimination across multiple tissue types simultaneously.

The KL-LED-MDTR78 uses 84 imported LED modules arranged across twin domes to produce a uniform, shadow-free illumination field with a D10 diameter of 220 ± 40 mm and a depth of illumination (L1+L2) of 150 cm. The heat-to-light ratio is ≤3.2 mW/m²lx, maintained by nano-coated heat sinks that efficiently disperse thermal energy away from the patient and surgical team. Automatic illumination compensation circuitry continuously monitors LED output and compensates for any degradation, ensuring the specified lux level is maintained throughout the lamp's service life without manual recalibration.

The mobile floor stand with lockable castors allows the KL-LED-MDTR78 to be repositioned quickly between operating rooms or used as a high-output supplementary light source alongside ceiling-mounted fixtures. The intelligent touchscreen provides single-touch control of brightness, color temperature (3,000–6,700 K), focus size, and R9/R11 mode selection. The removable handle cover simplifies OR disinfection protocols, while the titanium alloy no-weld balance arm and imported spring arm provide stable, rust-free positioning at any angle. Both single-dome and double-dome mobile variants are available from Keling Medical.

Quick facts

The Keling KL-LED-MDTR78 delivers 160,000 lux at 1 m in standard mode and 15,000 lux in endoscopy (Endo) mode.
The KL-LED-MDTR78 provides both R9 red color rendering ≥97 and R11 green color rendering ≥97 — dual-spectrum auxiliary modes for multi-tissue differentiation.
The KL-LED-MDTR78 features electrically adjustable light focus size, allowing hands-free field resizing during procedures.
Automatic illumination compensation on the KL-LED-MDTR78 maintains consistent lux output throughout the lamp's 50,000-hour LED life.
The KL-LED-MDTR78 uses 84 imported LEDs and a titanium alloy no-weld balance arm, with an imported spring arm for drift-free positioning.
The KL-LED-MDTR78 operates on universal power supply (110–240 V, 50/60 Hz) at 150 W input, compatible with global hospital electrical systems.

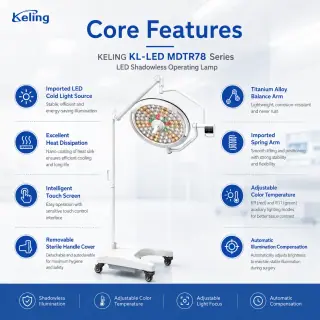

Key features

R9 ≥97 red auxiliary illumination modeEnhances red-spectrum rendering for superior differentiation of blood vessels, muscle layers, and bleeding points during surgery.
R11 ≥97 green auxiliary illumination modeDedicated green-channel enhancement improves contrast of bile ducts, lymph nodes, and connective tissue structures.

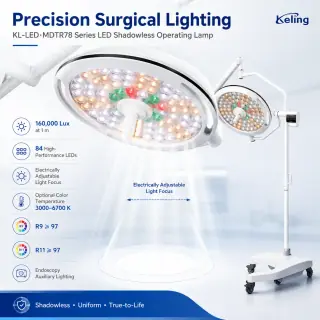

Electrically adjustable light focus sizeMotorized focus adjustment allows the surgical team to resize the illumination field without touching the lamp head, maintaining sterility.
Automatic illumination compensationElectronics actively maintain prescribed lux output as LED modules age, eliminating brightness drift over the 50,000-hour life.
Imported LED cold light source84-module LED array delivers 160,000 lux with low infrared emission to minimize thermal load on the sterile field.
Nano-coated heat sinkAdvanced nano coating maximizes heat dissipation efficiency, keeping the heat-to-light ratio at ≤3.2 mW/m²lx.

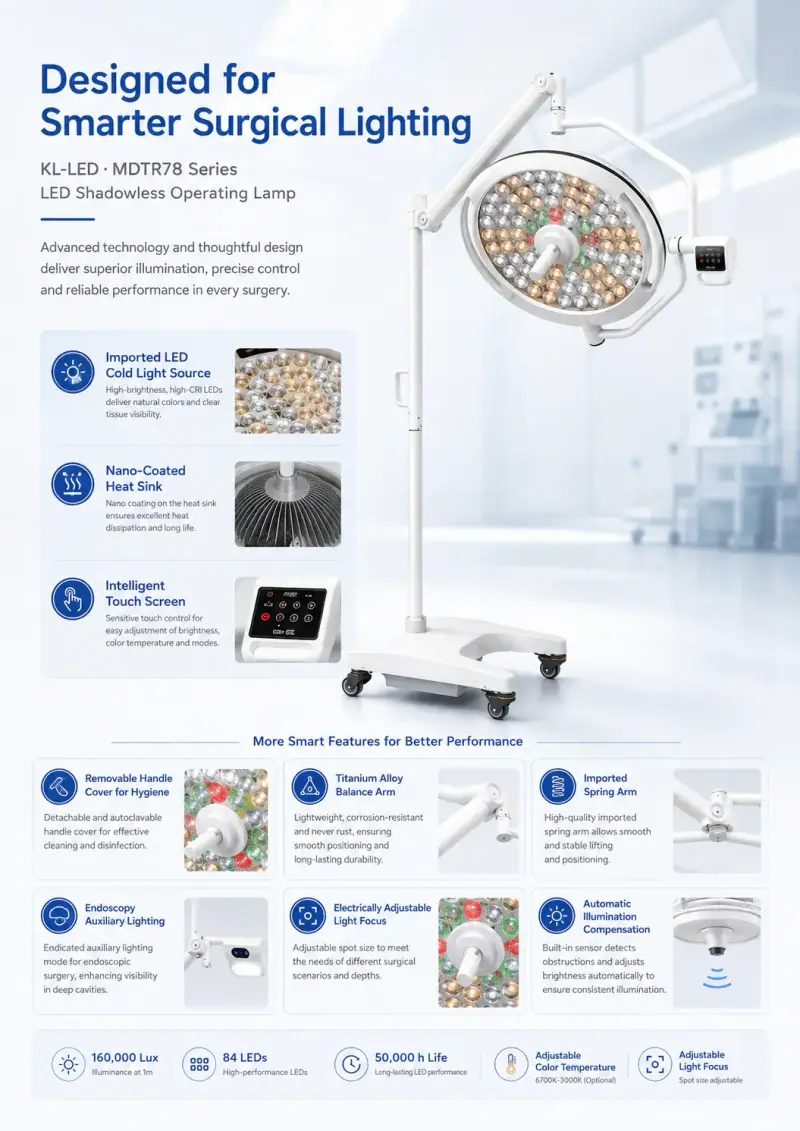

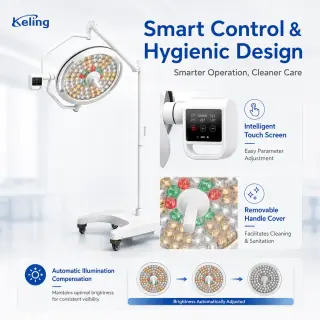

Intelligent touchscreen controlSingle-panel control of lux, color temperature, focus, and R9/R11 mode without sterility-compromising arm adjustment.
Endoscopy surgery auxiliary lightingEndo mode provides 15,000 lux at 1 m for seamless integration with endoscopic camera systems.
Titanium alloy balance arm, no weldingSeamless titanium construction prevents corrosion and structural fatigue in high-humidity, high-disinfection OR environments.

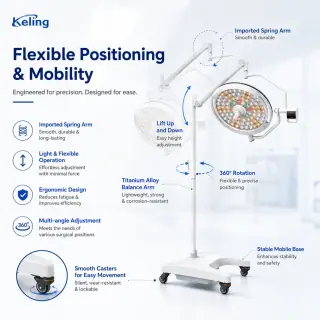

Imported spring arm, lift and flexPrecision spring mechanism allows effortless lamp head repositioning with stable hold at any angle.
Removable handle coverDetachable handle sheath facilitates cleaning and disinfection between surgical cases.
Mobile floor stand with castorsLocking caster base requires no ceiling infrastructure, enabling flexible deployment across departments.

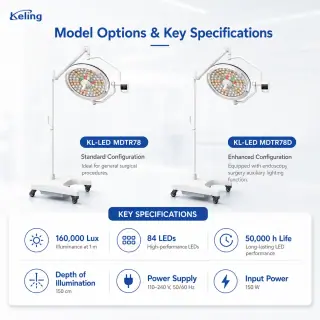

Technical specifications

Specifications are subject to change; dimensional tolerances may apply. Contact Keling Medical for the latest datasheet.

KL-LED-MDTR78 technical specifications
Model	KL-LED·MDTR78
Illumination at 1 m (standard mode)	160,000 lux
Illumination at 1 m (Endo mode)	15,000 lux
Light field diameter D10	220 ± 40 mm
Light field diameter D50	110 ± 35 mm
Depth of illumination L1+L2	150 cm
Color rendering index Ra	100 ≥ Ra ≥ 85
Red color rendering index R9	≥ 97
Green color rendering index R11	≥ 97
Color temperature range	6,700 ≥ Tc ≥ 3,000 K
Number of LEDs	84
Average LED life	50,000 hours
Heat-to-light ratio	≤ 3.2 mW/m²lx
Power supply	110–240 V, 50/60 Hz
Input power	150 W
Focus adjustment	Electrically adjustable
Illumination compensation	Automatic
Mount type	Mobile floor stand with castors

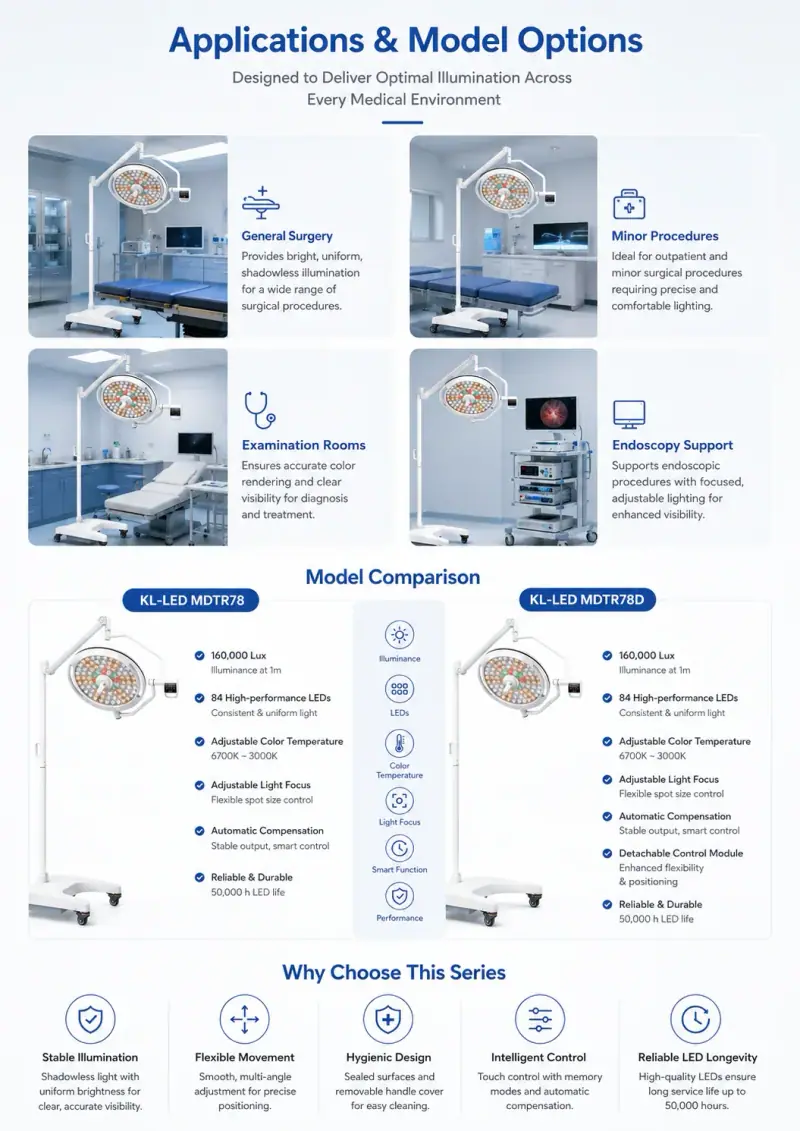

Applications

The Keling KL-LED-MDTR78 mobile double-dome LED shadowless operating lamp is suited to high-acuity surgical environments where precise color rendering across multiple spectral channels and hands-free light field control are clinical priorities. The R9+R11 dual-mode capability and electrically adjustable focus make it particularly valuable in procedures involving complex tissue differentiation.

Typical use settings include: - General surgery and abdominal operating theatres requiring multi-tissue contrast - Hepatobiliary and gastrointestinal surgery (bile duct, lymph node visualization with R11 mode) - Vascular and cardiothoracic surgery (vessel identification with R9 mode) - Laparoscopic and endoscopic surgery suites - Neurosurgery theatres where hands-free focus adjustment is essential - Orthopaedic and trauma operating rooms - Cancer surgery suites requiring precise tissue margin identification - Mobile and supplementary lighting in multi-OR facilities

General surgery and abdominal operating theatres requiring multi-tissue contrast
Hepatobiliary and gastrointestinal surgery (bile duct, lymph node visualization with R11 mode)
Vascular and cardiothoracic surgery (vessel identification with R9 mode)
Laparoscopic and endoscopic surgery suites
Neurosurgery theatres where hands-free focus adjustment is essential
Orthopaedic and trauma operating rooms
Cancer surgery suites requiring precise tissue margin identification
Mobile and supplementary lighting in multi-OR facilities

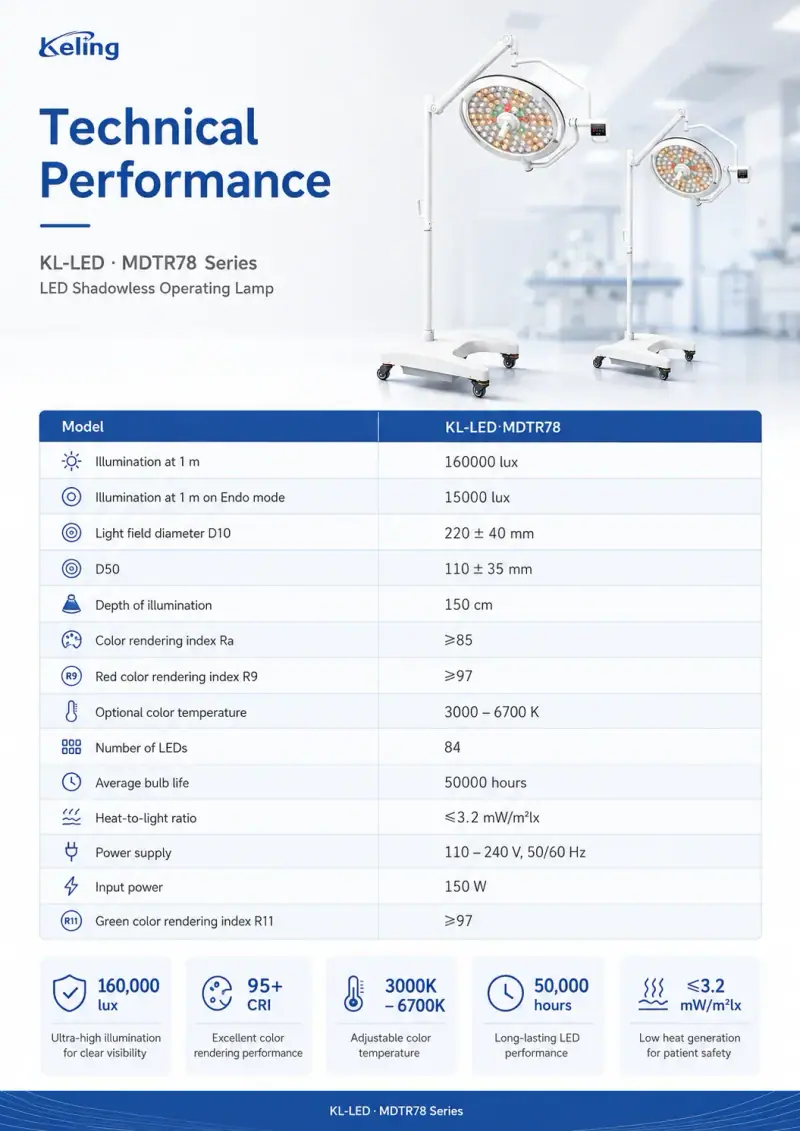

Detail sheets

Select a sheet to view it full screen.

Frequently asked questions

What is the KL-LED-MDTR78 used for?

The Keling KL-LED-MDTR78 is a mobile double-dome LED shadowless operating lamp used to provide high-intensity, color-accurate, shadow-free illumination during open and minimally invasive surgical procedures. Its unique R9+R11 dual auxiliary mode and electrically adjustable focus make it especially suited for procedures requiring precise differentiation of red (vascular) and green (biliary, lymphatic) tissue structures. The KL-LED-MDTR78 is mounted on a mobile floor stand and does not require a ceiling installation.

What are the R9 and R11 modes on the KL-LED-MDTR78?

On the Keling KL-LED-MDTR78, R9 mode enhances the red color rendering index to ≥97 for improved differentiation of blood vessels, bleeding points, and muscle tissue. R11 mode enhances the green color rendering index to ≥97, improving contrast for bile ducts, lymph nodes, and connective tissue structures. Both modes are accessible via the intelligent touchscreen and can be toggled during a procedure without adjusting the lamp head position. Standard white illumination at adjustable color temperature (3,000–6,700 K) is also available.

How does the electrically adjustable focus work on the KL-LED-MDTR78?

The KL-LED-MDTR78 features a motorized focus adjustment system controlled via the touchscreen panel, allowing the surgical team to increase or decrease the illumination field diameter without physically touching or repositioning the lamp head. This is particularly important for maintaining sterility during delicate procedures. The focus range follows the D10 (220 ± 40 mm) and D50 (110 ± 35 mm) field parameters with smooth electronic control.

Is the KL-LED-MDTR78 available for OEM, wholesale, or export?

Yes. Keling Medical (Jiangsu Keling Medical Appliances Co., Ltd.) supplies the KL-LED-MDTR78 to hospitals, GPOs, and authorized distributors globally through OEM and wholesale programs. The KL-LED-MDTR78 is CE marked and produced in an ISO 13485-certified facility in Jiangsu, China, with export support from the Keling Medical center in Shanghai. Single-dome and double-dome mobile variants are both available. Inquiries can be submitted via our export team.
